Description

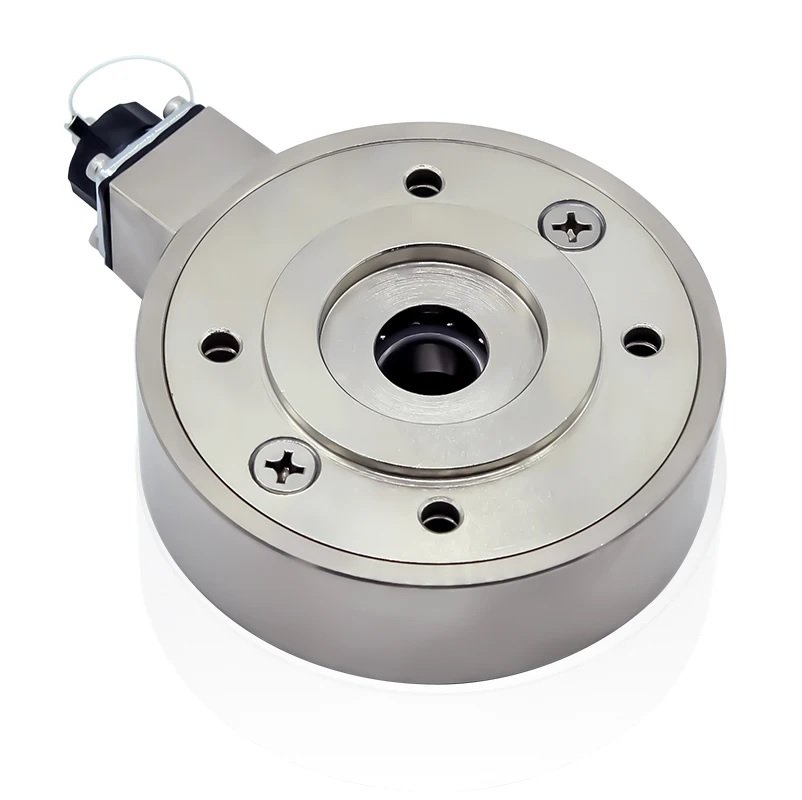

LFT-ZL Axaxial Tension Sensor
Applications
- Floor scales
- Pallet scale
- Tank, hopper weighing ,· High stability· The structure is highly low· The comprehensive accuracy is high· Anti-interference signals are stable· Quality alloy steel with nickel plating· widely used in electronic belt scale,packaging scale, filling scale In the equal weighing equipment.And the
automation equipment field and testing Trial field.
PECIFICATIONS
| Rated Capacity (N) | 50-12000 |
| Full Scale Output | 2.0mV/V ± 0.1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023%F.S |
| Repeatability | < ± 0.030%F.S |
| Hysteresis Error | < ± 0.030%F.S |
| Creep in 30 minutes | < ± 0.030%F.S |
| Input Resistance | 775Ω ±10Ω |
| Output Resistance | 702Ω ± 2Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 5000MΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Working Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150%F.S |
| Breaking Overload | 300%F.S |
| Seal Type | Glue / Welded sealed |
| IP Rating | IP67 / IP68 |
