Description
Force transducers for the measurement of static and dynamic loads in COMPRESSION an TENSION
Nominal Load from 10 kN to 1 MN
Linearity and Hysteresis 0,10% and 0,20%
Standard Output 2mV/V

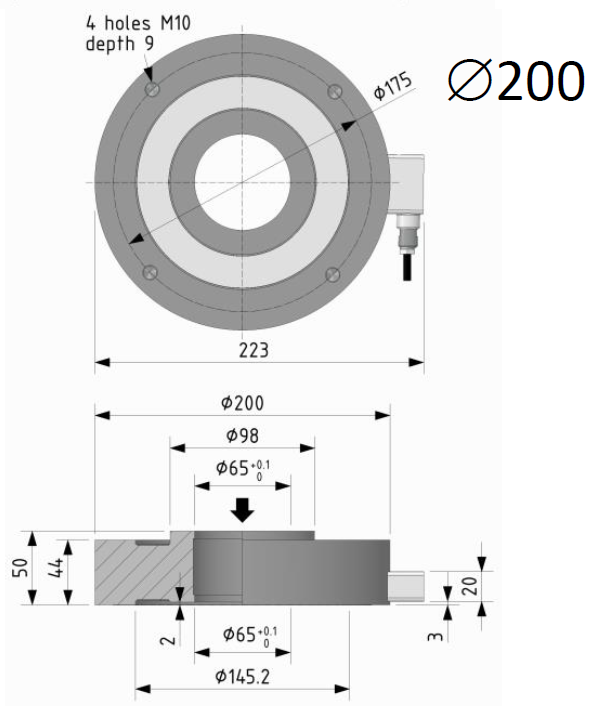

Dimensions[mm]
| LOAD | CODE |
|---|---|
| 10 kN | CC1014010KNI15 |
| 25 kN | CC1014025KNI15 |
| 50 kN | CC1014050KNI15 |
| 100 kN | CC10140100KNI15 |
| 250 kN | CC10165250KNI15 |
| 500 kN | CC10165500KNI15 |
| 750 kN | CC10200750KNI15 |
| 1000 kN | CC102001MNI15 |
IMPORTANT NOTE: The contact surfaces with force transducer must have a hardness HRC ³ 40 and a roughness Ra ≤1.6
Technical Data
| Specification | 10 – 50 kN | 250 – 500 kN | 750 – 1000 kN |
|---|---|---|---|
| NOMINAL LOAD | 10 – 25 – 50 kN 100 kN |
250 – 500 kN 750 – 1000 kN |
|
| LINEARITY | ±0.10% F.S. | ±0.20% F.S. | |
| NOMINAL SENSITIVITY / SENSITIVITY TOLERANCE | 2 mV/V ±0.1% F.S. | ||
| INPUT / OUTPUT RESISTANCE / INSULATION RESISTANCE / ZERO BALANCE / SUPPLY VOLTAGE | 800 ±20 Ω 705 ±2 Ω > 5 GW ±1% F.S. 10 V 1–15 V 18 V |
||
| TEMPERATURE EFFECT (10°C) a) on zero b) on sensitivity |
±0.028% F.S. ±0.024% F.S. |
||
| REFERENCE / NOMINAL / SERVICE / STORAGE TEMPERATURE | +23°C -10 / +40°C -10 / +70°C -20 / +80°C |
||
| MECHANICAL LIMIT VALUES: a) service load b) max permissible load c) breaking load d) max transverse load e) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
|||
| 120% ~0.17 mm |
150% ~0.20 mm |
>300% ~0.25 mm |
|
| WEIGHT | ~4.1 kg | ~5.5 kg | ~8.3 kg |
| PROTECTION CLASS (EN 60529) / MATERIAL | IP67 Acciaio Inox / Stainless Steel |
||
| CABLE OUTPUT | 5 m PVC 105°C shielded cable, Ø5.3 mm with 4 cores | ||
kg calibration on request.

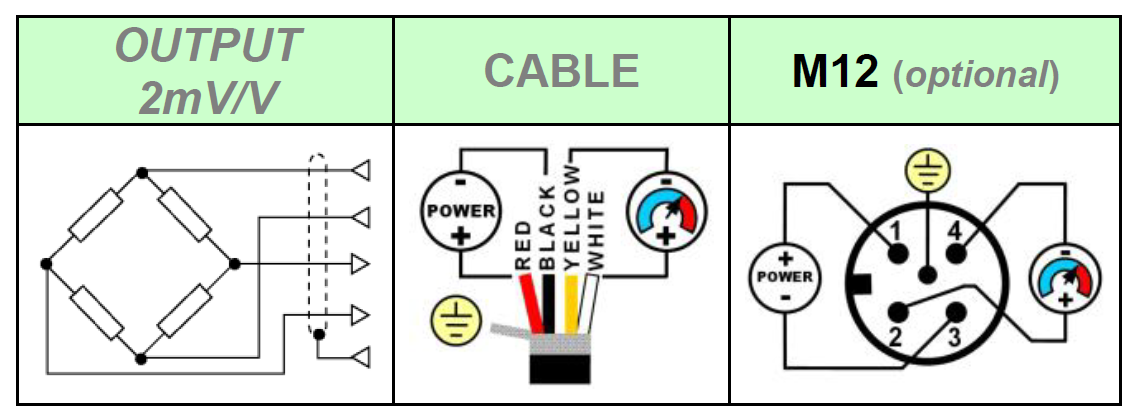

Electrical Connections
Shield connected to the transducers body.
