Description
EASYTORK ROTATING torque transducers
For the measurement in clockwise and anticlockwise direction
HEXAGONAL coupling with quick action chuck
Nominal torque: 5 N•m, 10 N•m, 25 N•m
Linearity and Hysteresis: 0.20%
Nominal speed of rotation: 4000 rpm
Contact transmission
Versions with ENCODER for integrated reading of ANGLE and SPEED
Digital Output
Rotating torque transducers
For measurements of TORQUE, SPEED, and ANGLE under both static and dynamic conditions in continuous rotation
Used in various measurement applications, including:
Calibration and quality control in laboratories
Industrial applications requiring verification of:
•Torque wrenches and screwdrivers
•Torque limiters
•Tightening torque of bolts, nuts, and screws
•Torque of drive motors and pumps
•Friction gears, bearings, seals
•Torsion springs or shock absorbers
•Components such as taps, valves, electric windows, wipers, etc.
Hexagonal coupling with quick action chuck

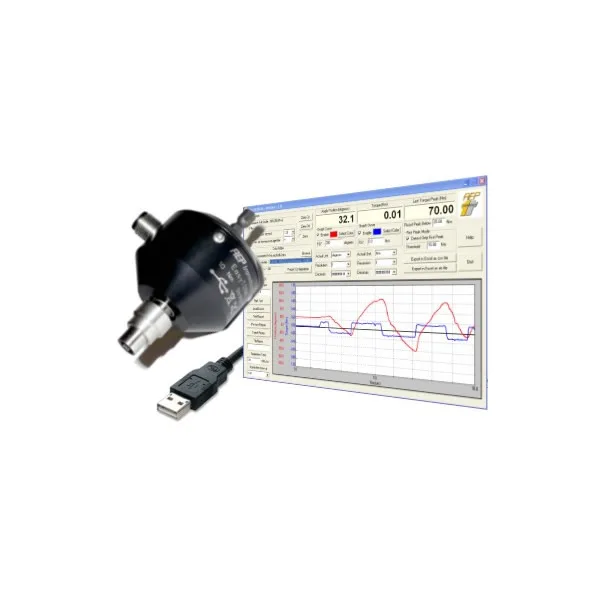

Complete with Software and USB cable
SPEED and ANGLE (optional)

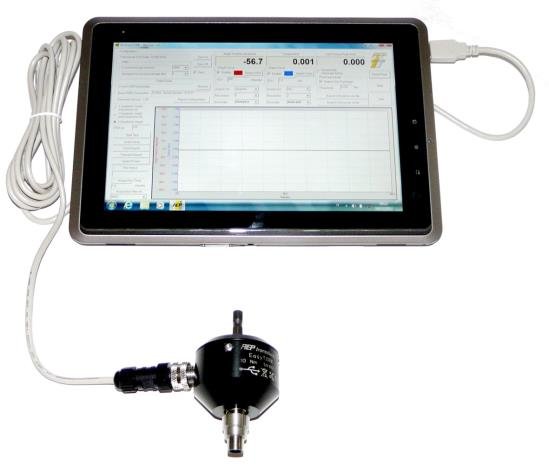

Tablet (optional)
Dimensions[mm]
Technical Data
| NOMINAL TORQUE | 5 – 10 – 25 Nm |
| LINEARITY and HYSTERESIS | ≤ ± 0.20 % |
| INTERNAL RESOLUTION READINGS PER SECONDS PROGRAMMABLE RESOLUTION |
24 bit 5 – 20 – 120 – 600 – 1200 – 2400 – 4800 0.001 Nm |
| ANGLE INDICATION / INTERNAL RESOLUTION / ANGLE RESOLUTION / SPEED INDICATION / DIRECTION INDICATION | 5760 div. / rotation 0.1 ° rpm or Hz Clockwise (+) or Anticlockwise (-) |
| ZERO FUNCTION | 50% |
| PROGRAMMABLE DIGITAL FILTER | Media mobile su 1-2-4-8-16-32 punti Average mobile on 1-2-4-8-16-32 points |
| PROGRAMMABLE RESOLUTION | 1, 2, 5, 10, 20, 50, 100 |
| TORQUE UNITS OF MEASUREMENT | Nm, Nmm, kNm, kgm, kgmm, gcm, Poundinch, Poundfoot |
| PEAK FUNCTION FIRST PEAK FUNCTION RELEASE PEAK FUNCTION |
Clockwise (+) and Anticlockwise (-) Release threshold programmable Release threshold programmable |
| NOMINAL POWER SUPPLY | 5 Vdc Supply via USB port |
| LIMIT MECHANICAL VALUES a) service torque b) max. permissible torque c) breaking torque d) highly dynamic torque c) nominal speed |
100% 150% >300% 70% 4000 rpm |
| REFERENCE TEMPERATURE WORKING TEMPERATURE RANGE STORAGE TEMPERATURE RANGE |
+23°C -10/+70°C -20/+80°C |
| TEMPERATURE EFFECT (1°C) a) on zero b) on sensitivity |
≤ ± 0.02% ≤ ± 0.02% |
| PROTECTION CLASS (EN60529) SENSOR EXECUTION MATERIAL CASE EXECUTION MATERIAL ELECTRICAL CONNECTION |
IP40 Acciaio Inox / Stainless Steel Alluminio / Aluminium M12 Male Connector |
| PROCESS COUPLING | Porta utensile con innesto rapido ¼” esagonale ⬣ Tool holder with quick coupling ¼” hexagonal ⬣ |
| CODE: | METORK | NOMINAL TORQUE | ANGLE |
| 5 = 5 Nm | X = NO | ||
| 10 = 10 Nm | A = YES | ||
| 25 = 25 Nm |
Example: METORK10A

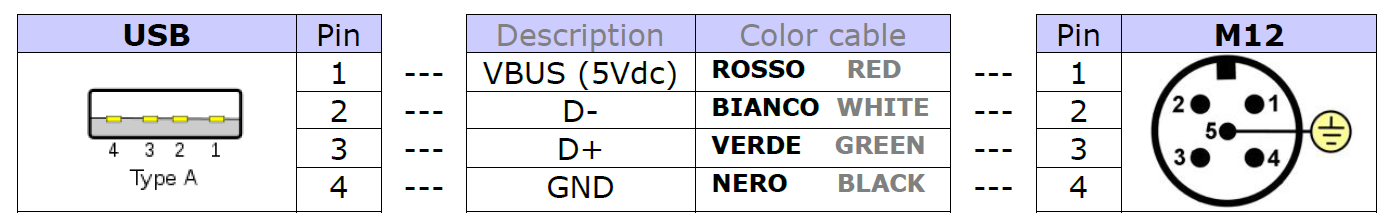

Electrical Connections
Accessories
Tablet PC portatile. (Windows 10/11)
PC with 10-inch touch screen (minimal resolution 1024×768)
for measurements and recording directly in the field.
USB cable with 4 poles straight M12x1 CONNECTOR, length 2m.
