Description
Force transducers for the measurement of static loads in COMPRESSION and TENSION
loads in COMPRESSION and TENSION
Nominal Load from 5 kN to 5 MN
Linearity and Hysteresis 0,05%
Standar output
Dimensions[mm]
| LOAD | ÆA | B | C | ÆD | ÆE | F | G | n°G | H | T |
| 5 kN | 100 | 86 | 35 | 72 | 32 | M20×1.5 | 9 | 6 | 121 | 7.5 |
| 10 kN | ||||||||||
| 25 kN | ||||||||||
| 50 kN (1) | ||||||||||
| 50 kN | 127 | 110 | 35 | 92 | 47 | M30×2 | 10.5 | 8 | 149 | 7.5 |
| 100 kN | ||||||||||
| 200 kN | 165 | 138 | 50 | 108 | 62 | M42×3 | 17 | 12 | 188 | 15 |
| 300 kN | ||||||||||
| 500 kN | 60 | 20 | ||||||||
| 750 kN | 230 | 185 | 80 | 145 | 98 | M60×3 | 25 | 12 | 254 | 30 |
| 1 MN | ||||||||||
| 2 MN | 300 | 250 | 100 | 198 | 132 | M100×3 | 25 | 16 | 339 | 50 |
| 3 MN (2) | 350 | 294 | 120 | 238 | 178 | M100×3 | 28 | 16 | 389 | 60 |
| 5 MN (2) | 130 | 65 |
(1)The force transducer 50 kN Ø100 is guaranteed in TENSION up to 25 kN.
(2)The force transducers 3 MN and 5 MN are guaranteed in TENSION up to 2,5 MN.
Technical Data
| NOMINAL LOAD | 5-10-25- 50(1) kN | 50 kN / 100 kN | 200 kN / 300 kN | 500 kN | 750 kN / 1 MN | 2 MN | 3 MN(2) / 5 MN(2) |
| LINEARITY HYSTERESIS |
±0.05% F.S. ±0.05% F.S. |
±0.10% F.S. ±0.10% F.S. |
|||||
| TEMPERATURE EFFECT (10°C) a) on zero b) on sensitivity EFFECT OF TRANSVERSE LOAD: a) at 10% of nominal load |
≤±0.028% F.S. ≤±0.024% F.S.≤±0.030% F.S. |
||||||
| NOMINAL SENSITIVITY SENSIVITY TOLERANCE |
4-20 mA (3 wires), ±5V or ±10V(3) ≤±0.1% |
||||||
| NOMINAL POWER SUPPLY | ±5V → 12-24Vdc 4-20mA and ±10V → 18-24Vdc |
||||||
| MAX. POWER SUPPLY MAX. ABSORPTION (without load applied) LOADING RESISTANCE: a) tension b) current INSULATION RESISTANCE ERO BALANCE RESPONSE FREQUENCY |
28Vdc
30mA |
||||||
| MECHANICAL LIMIT VALUES | |||||||
| REFERRED TO NOMINAL LOAD: | |||||||
| a) service load | 120% | ||||||
| b) max permissible load | 150% | ||||||
| c) breaking load | >300% | ||||||
| d) max transverse load e) max permissible dynamic load |
100% 75% (4) |
||||||
| Displacement at nominal load (mm) | ~0.06 | ~0.09 | ~0.17 | ~0.17 | ~0.23 | ~0.21 | ~0.21 |
| REFERENCE TEMPERATURE | +23°C | ||||||
| TEMPERATURE NOMINAL RANGE | -10 / +40°C | ||||||
| SERVICE TEMPERATURE | -10 / +70°C | ||||||
| STORAGE TEMPERATURE | -20 / +80°C | ||||||
| WEIGHT (kg) | 1.60 | 2.45 | 5.80 | 6.80 | 16.5 | 35 | 63 |
| PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
IP67 Acciaio Inox / Stainless Steel 5 m |
||||||
| FIXING SCREWS: | |||||||
| a) diameter | M8 | M10 | M16 | M16 | M24 | M24 | M27 |
| b) resistance class | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 |
| c) tightening torque (Nm) | 40 | 70 | 368 | 368 | 460 | 460 | 1500 |
(1) The force transducer 50 kN Ø100 is guaranteed in TENSION up to 25 kN.
(2) The force transducers 3 MN and 5 MN are guaranteed in TENSION up to 2,5 MN.
(3) Tests and calibrations performed in COMPRESSION with the transducer mounted on a bearing support with correctly tightened clamping screws.
(4) The dynamic load must be applied to the transducer central thread and not to the external fixing rim.
Dimensions[mm]
| TC4: | A | B | C | D | E | F | G | H | L | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 5, 10, 25, 50 kN | 108 | 37 | 35 | 36 | Ø 57 | Ø 100 | Ø 70 | M 20 × 1.5 | Ø 32 | ~ 170 |
| 50, 100 kN | 108 | 37 | 35 | 36 | Ø 76 | Ø 127 | Ø 100 | M 30 × 2 | Ø 47 | ~ 200 |
| 200 kN | 169 | 60 | 50 | 59 | Ø 76 | Ø 165 | Ø 100 | M 42 × 3 | Ø 62 | ~ 224 |
| 300 kN | 169 | 60 | 50 | 59 | Ø 76 | Ø 165 | Ø 100 | M 42 × 3 | Ø 62 | ~ 465 |
| 500 kN | 179 | 60 | 60 | 59 | Ø 76 | Ø 165 | Ø 100 | M 42 × 3 | Ø 62 | ~ 513 |
| 750 kN, 1 MN | 252 | 85 | 80 | 87 | Ø 126 | Ø 230 | Ø 180 | M 60 × 3 | Ø 98 | / |
| 2 MN | 309 | 85 | 100 | 124 | Ø 129 | Ø 300 | Ø 250 | M100 × 3 | Ø 132 | / |
| 3 MN | 384 | 120 | 120 | 144 | Ø 168 | Ø 350 | Ø 330 | M100 × 3 | Ø 178 | / |
| 5 MN | 394 | 120 | 130 | 144 | Ø 168 | Ø 350 | Ø 330 | M100 × 3 | Ø 178 | / |
| TC4AMP: | CODE | ACCESSORIES (optional): | |
| 5, 10 kN 25, 50 kN |
CTIC22 | ① | Loading head. |
| CTC425M20 | ② | Spherical loading head M20×1.5. | |
| CPBTC4D100 | ③ | Mounting plate Ø 100 mm. | |
| CACCEM20 | ④ | Knuckle joints. | |
| 50, 100 kN | CTIC28 | ① | Loading head. |
| CTC445M30 | ② | Spherical loading head M30×2. | |
| CPBTC4D127 | ③ | Mounting plate Ø 127 mm. | |
| CACCEM30 | ④ | Knuckle joints. | |
| 200, 300 kN
500 kN |
CTIC35 | ① | Loading head. |
| CTS62M42TC4 | ② | Spherical loading head M42×3 (200–300kN) | |
| CTS62M42TC450T | ② | Spherical loading head M42×3 | |
| CPBTC4D165 | ③ | Mounting plate Ø 165 mm. | |
| CACCEM42 | ④ | Knuckle joints. (max 200KN) | |
| CACCEM4230T | ④ | Knuckle joints. (max 300KN) | |
| CACCEM4250T | ④ | Knuckle joints. (max 500KN) | |
| 750 kN 1 MN |
CTIC60 | ① | Loading head. |
| CTS96M60 | ② | Spherical loading head M60×3. | |
| CPBTC4D230 | ③ | Mounting plate Ø230 mm. | |
| 2 MN | CTIC106① | ① | Loading head. |
| TS160M100 | ② | Spherical loading head M100×3 (2MN) | |
| CPBTC4D300 | ③ | Mounting plate Ø300 mm. | |
| 3 MN, 5 MN | CTIC140 | ① | Loading head. |
| CTS170M100 | ② | Spherical loading head M100×3. | |
| CPBTC4D350 | ③ | Mounting plate Ø 350 mm. |

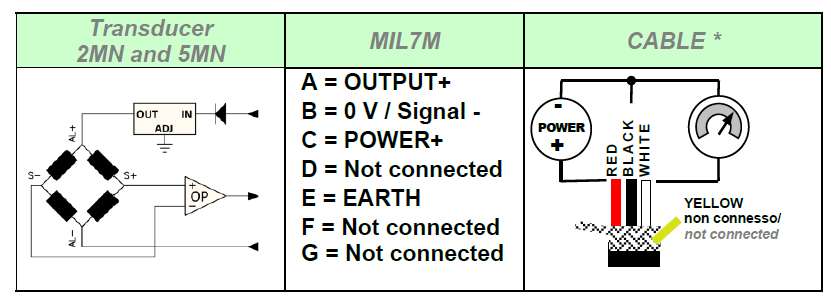

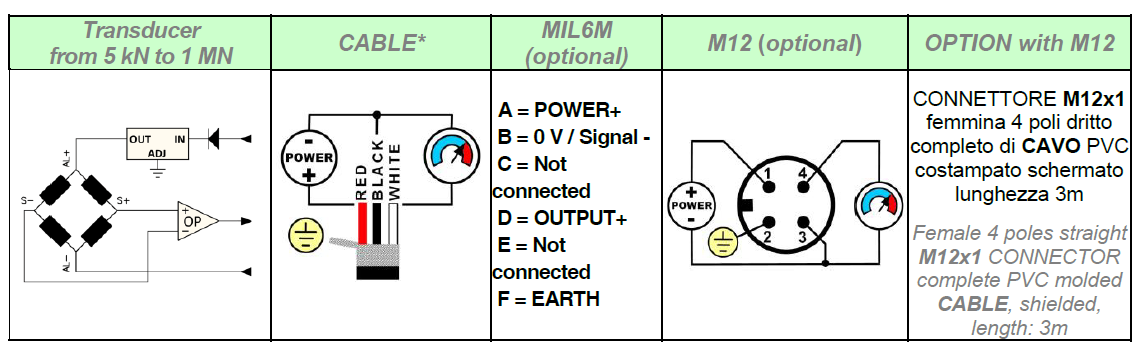

Electrical Connections
Warning Protect POWER+ by using an external 100 to 200mA fast-blow fuse
* PVC 105°C shielded cable, Ø5.2mm with 4 tinned Ø0.35mm2 conductors.
