Description
Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
Class (ISO 376) 00, 0.5 and 1
Linearity and Hysteresis 0,03%
Output: 2mV/V
On request

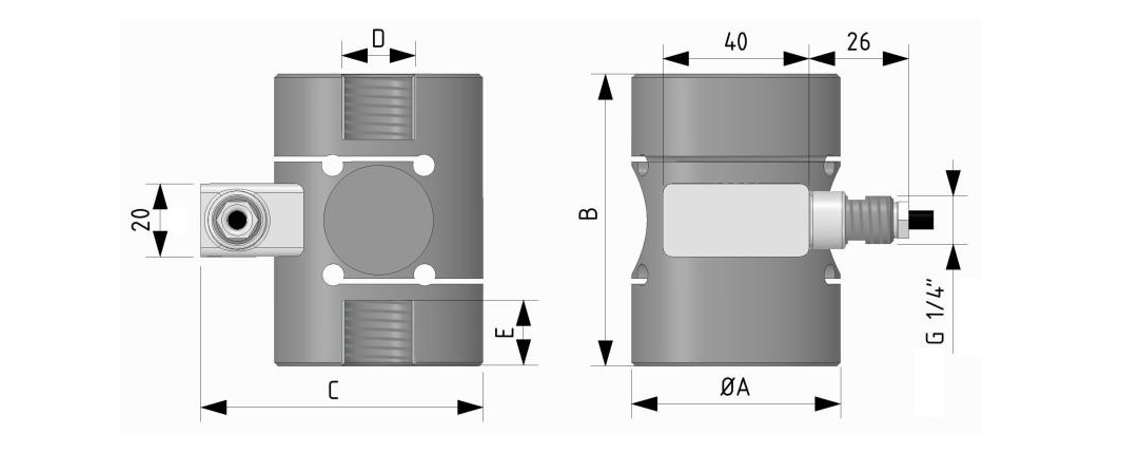

Dimensions[mm]
| CODE (Class 00) | CODE (Class 0.5) | CODE (Class 1) | LOAD | ÆA | B | C | D | E |
| CTCETM5KN005 | CTCETM5KNI05 | CTCETM5KNI15 | 5 kN | 57 | 80 | 74.5 | M20X1.5 | 17 |
| CTCETM10KN005 | CTCETM10KNI05 | CTCETM10KNI15 | 10 kN | |||||
| CTCETM25KN005 | CTCETM25KNI05 | CTCETM25KNI15 | 25 kN | |||||
| CTCETM50KN005 | CTCETM50KNI05 | CTCETM50KNI15 | 50 kN | 82 | 110 | 102 | M30X2 | 20 |
Technical Data
| Accuracy class: ISO 376 | 00 | 0.5 | 1 |
| NOMINAL LOAD | 5 – 10 – 25 – 50 – 75 – 100 kN | ||
| RELATIVE ERRORS (at reading) a) repeatability 0°-120°-240° (b) b) interpolation (fc) c) reversitivity (u) d) zero (fo) |
≤0.050%(1) ≤0.020%(1) ≤0.070%(1) ≤0.010% F.S. |
≤0.085%(1) ≤0.040%(1) ≤0.135%(1) ≤0.020% F.S. |
≤0.150%(1) ≤0.055%(1) ≤0.250%(1) ≤0.020% F.S. |
| LINEARITY HYSTERESIS | ≤0.03% F.S. ≤0.03% F.S. |
||
| TEMPERATURE EFFECT (10°C) a) on zero b) on sensitivity |
≤0.030% F.S. ≤0.011% F.S. |
||
| NOMINAL SENSITIVITY SENSIVITY TOLERANCE | 2 mV/V ≤0.1% F.S. |
||
| INPUT RESISTANCE OUTPUT RESISTANCE I NSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
440 ± 20W 352 ± 2W >5 GW ≤1% F.S. 10 V 1-15 V 18 V |
||
| MECHANICAL LIMIT VALUES REFERRED TO NOMINAL LOAD: a) service load b) max permissible load c) breaking load d) max transverse load e) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
120% 150% >300% 50% 50% ~0.3 mm |
||
| REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23 °C -10 / +40 °C -10 / +70 °C -20 / +80 °C |
||
| WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
1.45 – 4.45 kg IP67 Acciaio Inox / Stainless Steel 5 m |
||
(1) Percentage errors referred to reading, min. 1/ 10 of the nominal load
Classifications according ASTM E74 on request

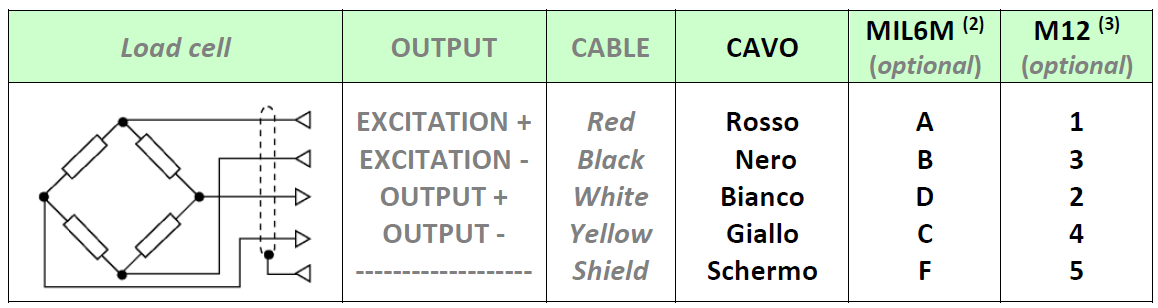

Electrical Connections
STANDARD OUTPUT: PVC 105°C shielded cable, Ø 5.2mm with 4× Ø 0.35mm2 soldered conductors.
Shield connected to the body of the transducer.
