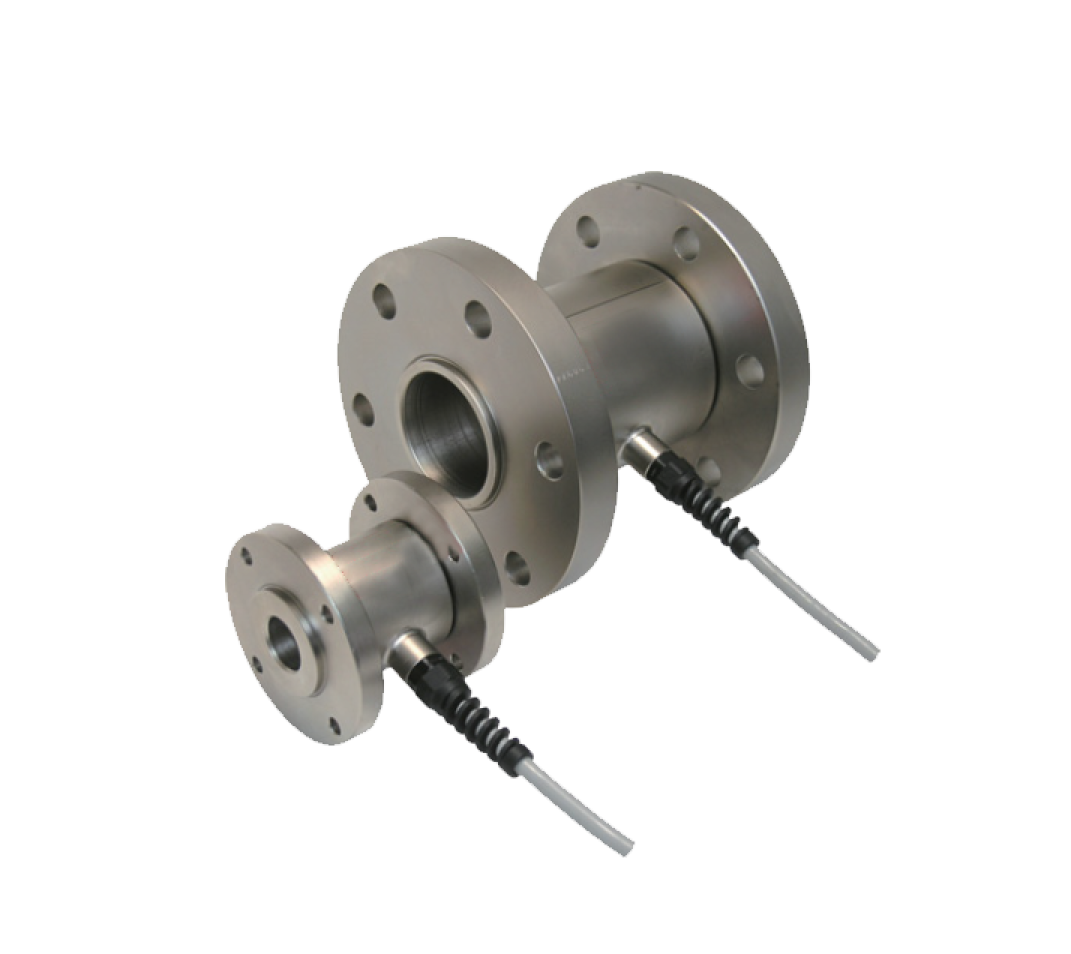

ABRTL-NR Series Reaction Torque Transducer
Key features
- Capacity: 50, 100, 200, 500, 1.000, 2.000 Nm
- Low deflection
- Small size
- Alloy tool steel construction
- High stability and sensitivity
- -20 to 80°C Operating temperature
About the ABRTL-NR Series Reaction Torque Transducer
The ABRTL-NR series, reaction torque transducers, guarantee the high performance comparing to the other in the same class.
TECHNICAL SPECIFICATIONS
| MODEL | ABRTL – NR | |
| Rated capacity (R.C.) | 10, 20, 50, 100, 200, 500, 1000, 2000Nm | |
| Rated output (R.O.) | 1.0mV/V ± 0.5% | |
| Non-linearity | ≤0.2% R.O. | |
| Hysteresis | ≤0.2% R.O. | |
| Non-repeatability | ≤0.1% R.O. | |
| Creep error | ≤0.2% in 20min. | |
| Zero balance | ≤1% R.O. | |
| Compensated temperature range | -10 ~ 70°C | |
| Operating temperature range | -20 ~ 80°C | |
| Temp. effect on rated output | ≤0.01% LOAD/10°C | |
| Temp. effect on zero balance | ≤0.01% R.O./10°C | |
| Terminal input resistance | 420 Ohms ± 50 Ohms | |
| Terminal output resistance | 350 Ohms ± 5 Ohms | |
| Insulation resistance (Min.) | 2000 MOhms at 50V DC | |
| Excitation voltage | 3~12V(Recommended), 15V(Max.) | |
| Electrial connection (22AWG x 4Core Shielded) | 10 – 100Nm | Ø5mm x 3m |
| 200-2000Nm | Ø7mm x 6m | |
| Safe overload | 150% R.C | |
| Ultimate overload | 300% R.C | |
