SMSBLC Subminiature S-beam load cell
Key features
- ±0.1% (full scale) non-linearity
- Overload protection in both tension & compression directions
- Options include IEEE1451.4 TEDS capability

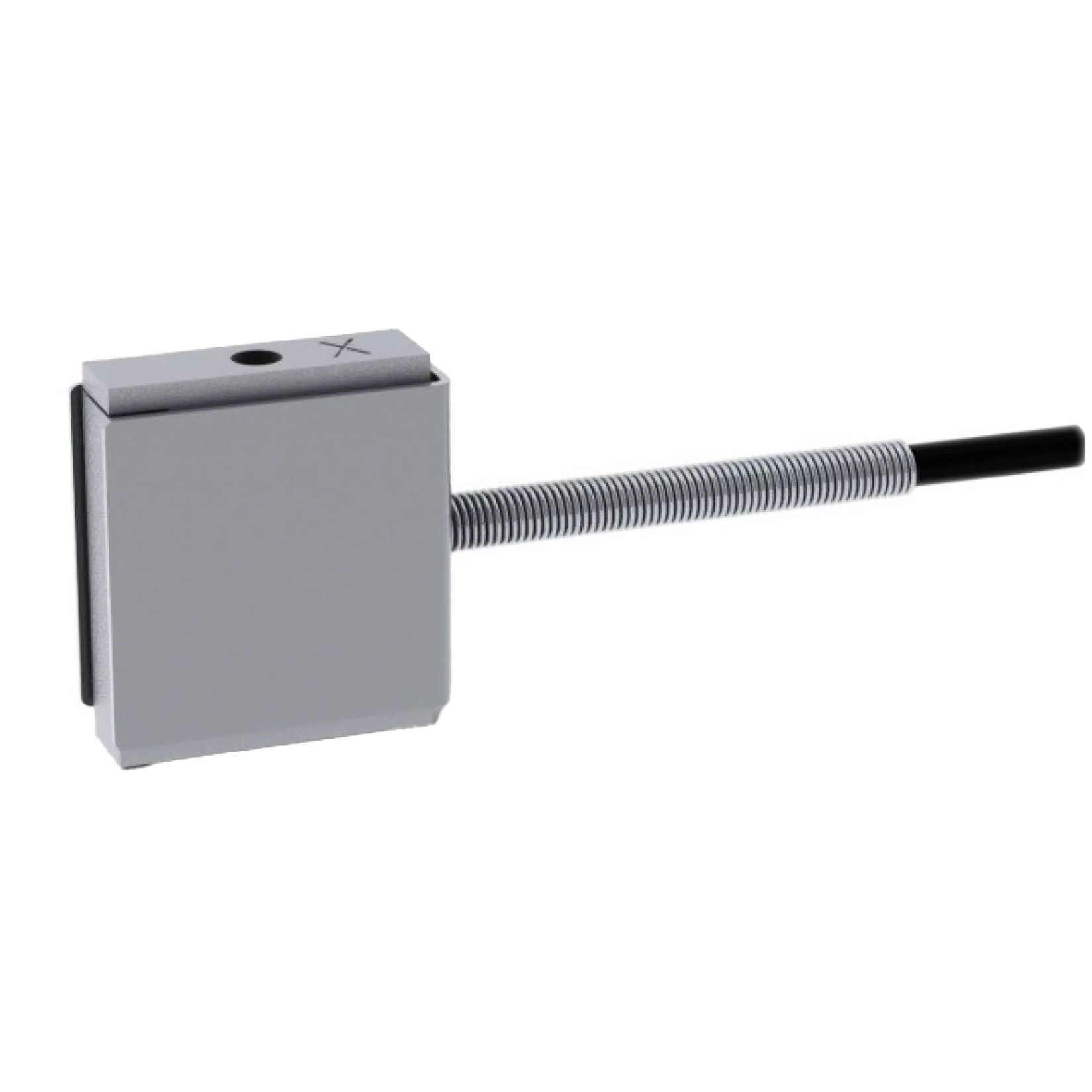

About the SMSBLC Subminiature S-beam load cell
The Subminiature S-Beam Load Cell is a bi-directional strain gauge-based transducer with high performance and built-in temperature compensation.
This design provides better than ±0.1% (full scale) non-linearity and includes overload protection in both tension and compression directions. Options include IEEE1451.4 TEDS capability.
The sensor is provided with a #32 AWG 4-conductor braided shielded cable with an outer jacket of 0.087” [2.2 mm] diameter, 5 ft [1.5m] long, with no connection between the shield and the sensor body. For additional protection, the cable is contained within a stainless steel spring for strain relief purposes for the first 1” [25 mm].
Technical Specifications
| Specification | Value |
|---|---|
| Rated Capacity (lbf) | 1, 2, 5, 10, 25, 50, 100 |
| Rated Output (RO) (mV/V) | 2 nominal |
| Safe Overload (%) | 1000 of R.O., 200 tension only for 50 & 100lbf |
| No Load Offset (Zero Balance) (%) | ±3 of RO |
| Excitation (VDC or VAC) (V) | 5, 10 |
| Input Impedance | 1000 Ω nom. |
| Output Impedance | 1000 Ω nom. |
| Non-Linearity (%) | ±0.1 of RO |
| Hysteresis (%) | ±0.1 of RO |
| Non-Repeatability (%) | ±0.1 of RO |
