Description

Models

101BHM2-(50-1500)kg, 101BHM2-2t

Features

• Assembles: 101BH s-beam load cell
• Material: Alloy steel
• Capacities: 50kg-2t
• NTEP certified load cells from 100lb-20Klb
• OIML certified load cells from 200kg-10t
• CE , RoHS and Ex certified load cells
• Stray currents can go through the grounding strap bypassing the load cell
• Allows for high accuracy tension loading
• Load cell not included

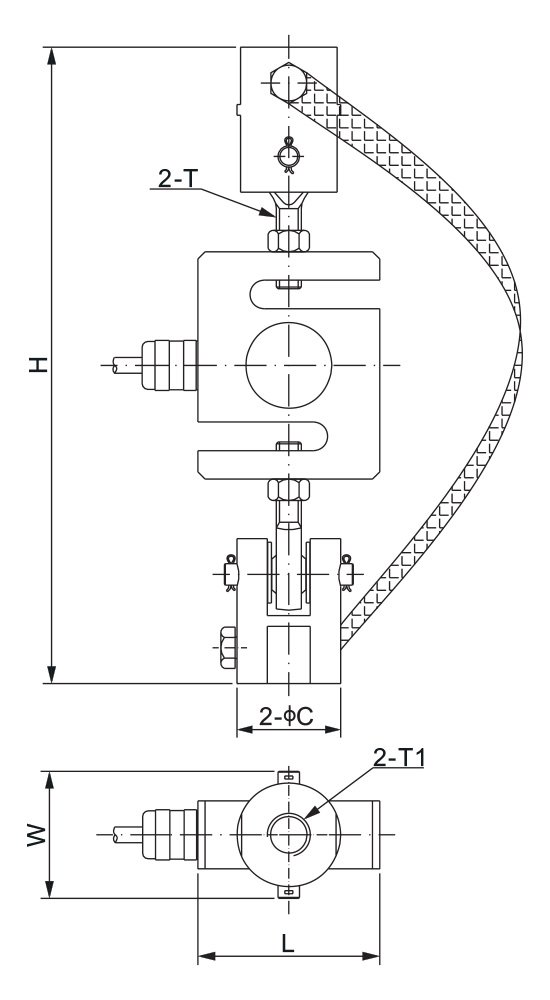

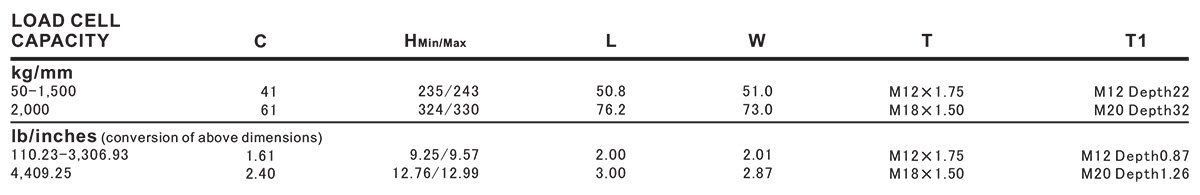

Dimensions
