Description

Models

101NHM2-(50-250)lb, 101NHM2-(0.5-2)Klb, 101NHM2-(0.5-2)Klb-A, 101NHM2-5Klb, 101NHM2-E-10Klb

Features

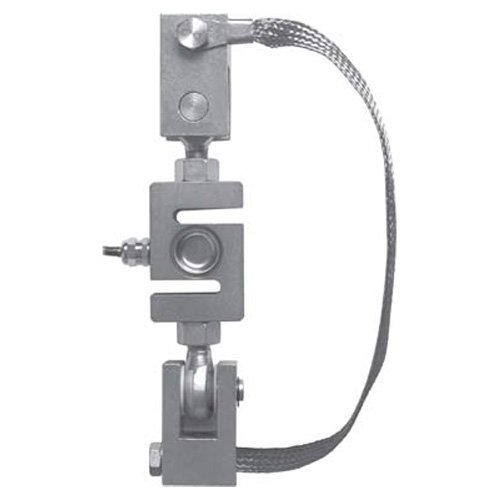

• Assembles: 101NH s-beam load cell
• Material: Alloy Steel
• Capacities: 50lb-10Klb
• NTEP certified load cells from 100lb-20Klb
• OIML certified load cells from 200kg-10t
• CE , RoHS and Ex certified load cells
• Stray currents can go through the grounding strap bypassing the load cell
• Allows for high accuracy tension loading
• Load cell not included

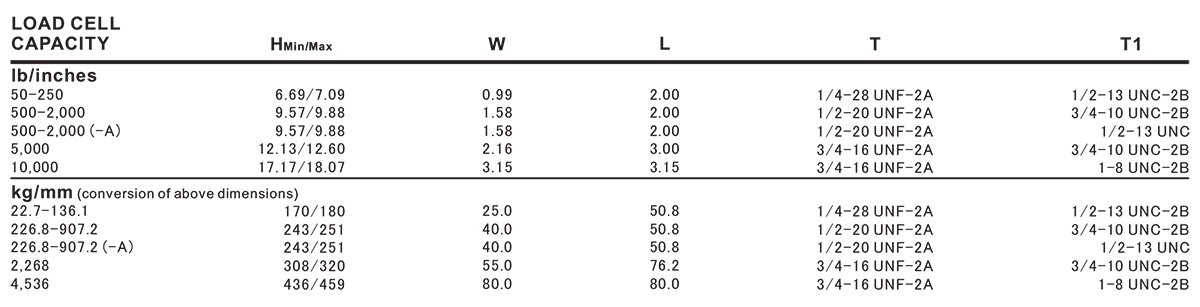

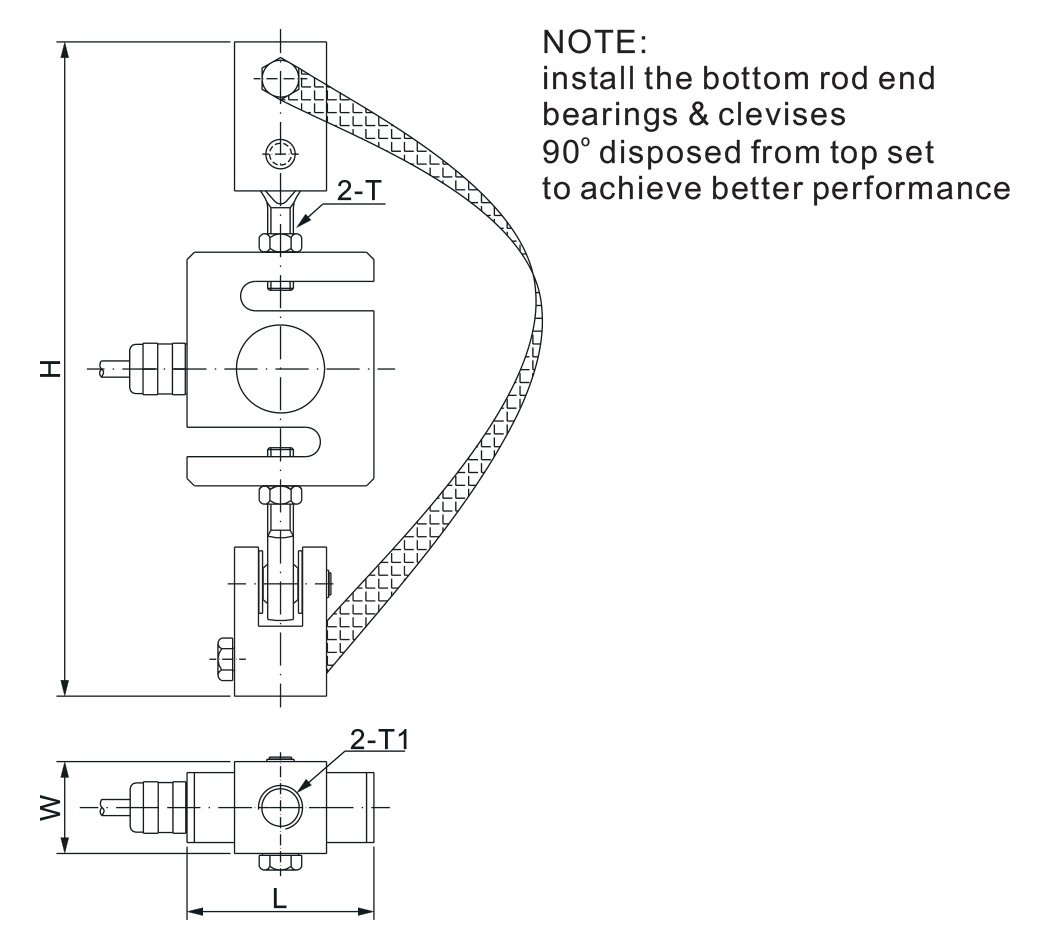

Dimensions
