Description

Models

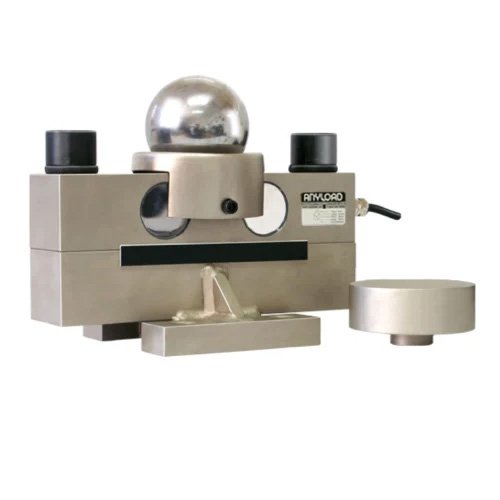

102AH-5t, 102AH-10t, 102AH-15t, 102AH-20t, 102AH-25t, 102AH-30t, 102AH-50t

Features

• Material: Alloy steel
• Rated Capacities: 5t, 10t, 15t, 20t, 25t, 30t, 50t
• Full Scale Output: 2mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

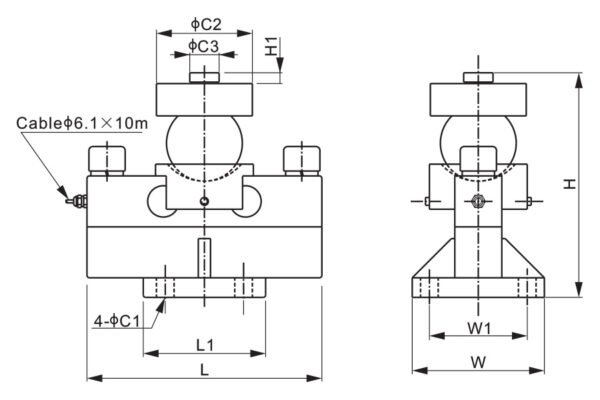

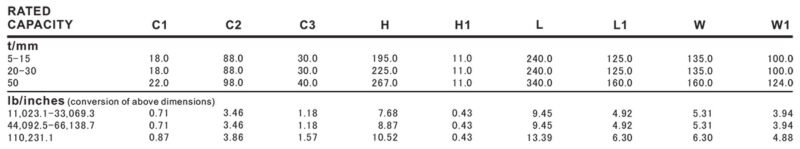

Dimensions

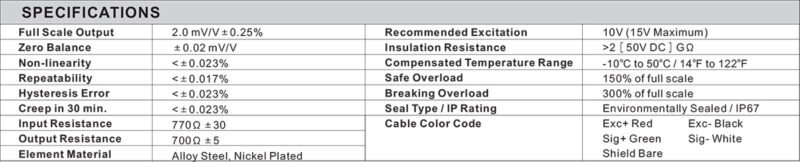

Specifications
