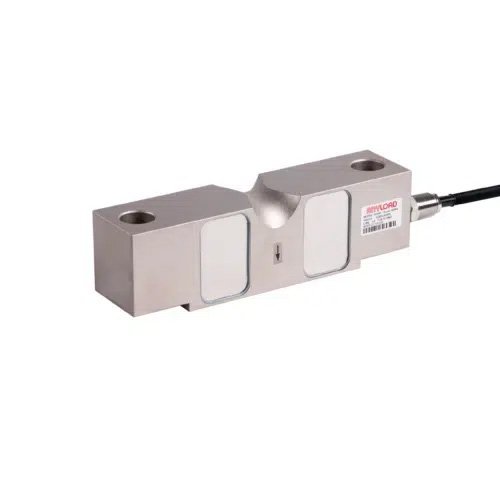

ANYLOAD / 102BH / Double-Ended Shear Beam Load Cell

ANYLOAD / 102BH / Double-Ended Shear Beam Load Cell

Capacity: 10 Klb, 20 Klb, 25 Klb, 40 Klb, 50 Klb, 60 Klb, 75 Klb, SE100 Klb, 100 Klb, 125 Klb, 200 Klb, 300 Klb, 400 Klb, 5 t, 10 t, 11 t, 15 t, 20 t, 25 t, 30 t, 35 t, 50 t
Material: Alloy steel
Type: Double-Ended Shear Beam
Protection Rating: IP67

Categories: , ,
Tags: ,

Description

Models

102BH-10Klb, 102BH-20Klb, 102BH-25Klb, 102BH-40Klb, 102BH-50Klb, 102BH-60Klb, 102BH-75Klb, 102BH-SE100Klb, 102BH-100Klb, 102BH-125Klb, 102BH-200Klb, 102BH-300Klb, 102BH-400Klb, 102BH-60Klb-02, 102BH-75Klb-02, 102BH-5t, 102BH-10t, 102BH-15t, 102BH-20t, 102BH-25t, 102BH-30t, 102BH-35t, 102BH-50t

Features

  • Material: Alloy steel
  • Rated Capacities: 10Klb, 20Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, SE100Klb, 100Klb, 125Klb, 200Klb, 300Klb, 400Klb, 5t, 10t, 11t, 15t, 20t, 25t, 30t, 35t, 50t
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP67
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125Klb
  • OIML MAA C3, Y=7 500 certified from 11t-55t
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request
  • Lightning Protection Version (60Klb, 75Klb)
  • Interchangeable with Rice Lake RL75058

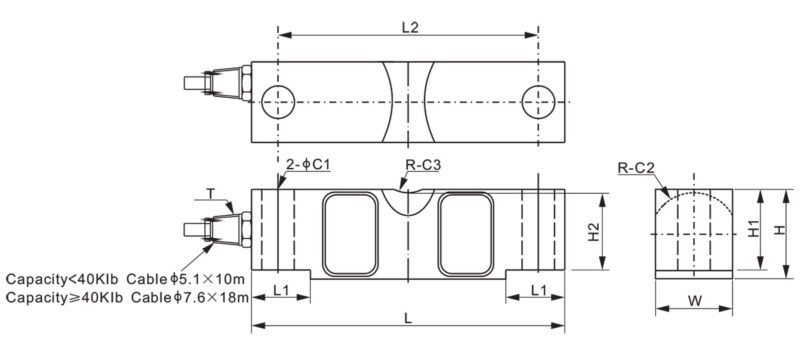

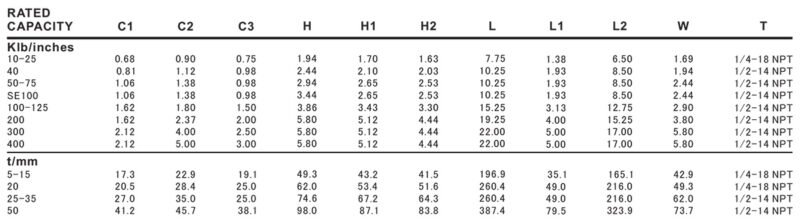

Dimensions

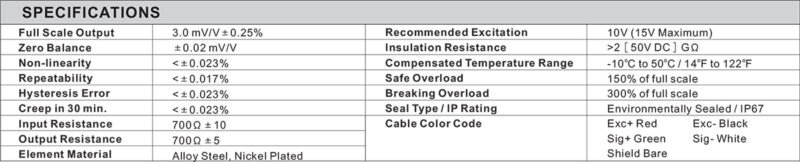

Specifications
