Description

Models

102BS-10Klb-YZ, 102BS-20Klb-YZ, 102BS-25Klb-YZ, 102BS-50Klb-YZ, 102BS-60Klb-YZ, 102BS-75Klb-YZ

Features

• Material: Stainless steel
• Rated Capacities: 10Klb, 15Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb
• Full Scale Output: 3 mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• NTEP: 25Klb-125Klb: NTEP 1:10000 Class IIIL, Multiple Cell
• OIML: 11t-55t: OIML MAA C5, Y=15000
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

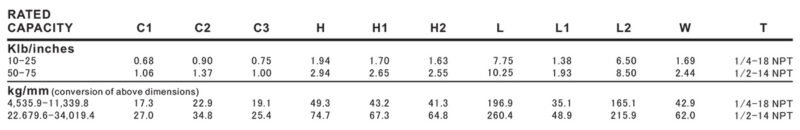

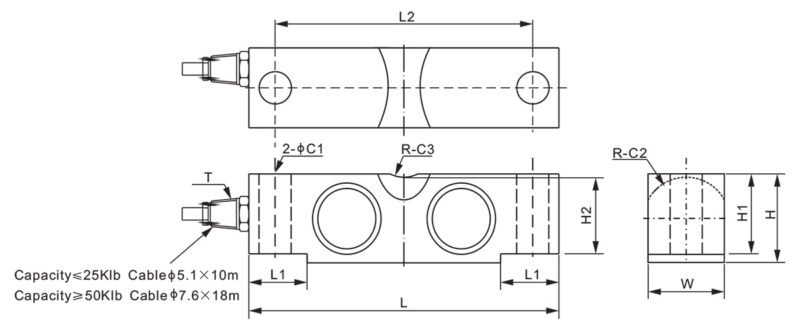

Dimensions

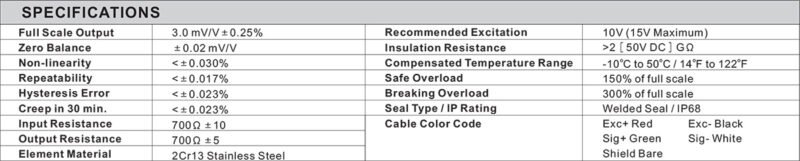

Specifications
