Description

Models

102DH-5Klb, 102DH-10Klb, 102DH-15Klb, 102DH-20Klb, 102DH-30Klb, 102DH-40Klb, 102DH-50Klb, 102DH-60Klb, 102DH-75Klb, 102DH-100Klb, 102DH-150Klb, 102DH-200Klb, 102DH-250Klb

Features

• Material: Alloy steel
• Rated Capacities: 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb, 250Klb
• Full Scale Output: 3mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10Klb-100Klb
• OIML MAA C4, Y=15 000 certified from 9t-45t
• CE, RoHS and Ex certified
• ATEX, FM, IECEx available upon request

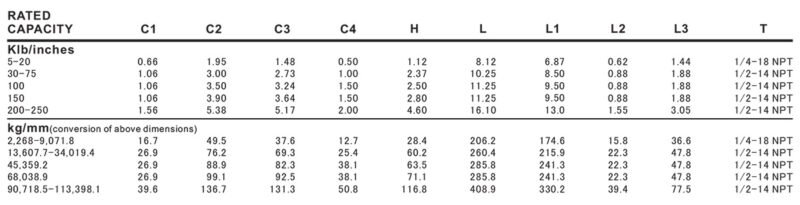

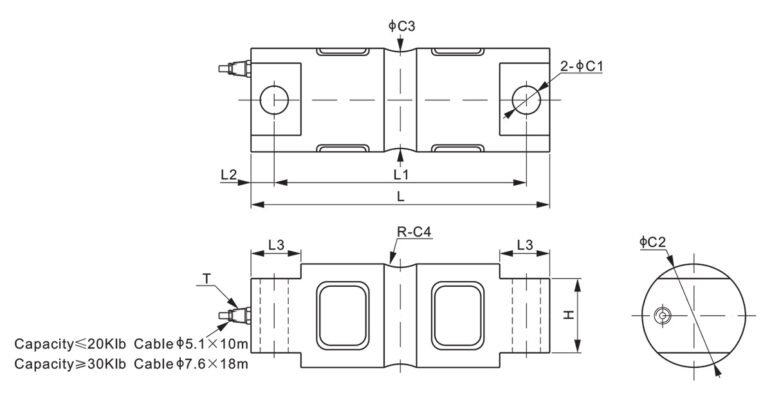

Dimensions

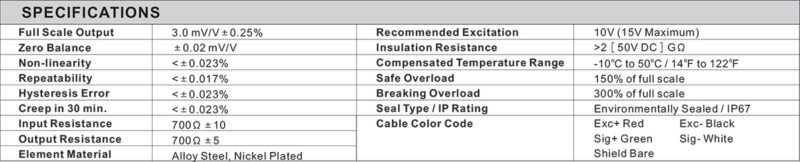

Specifications
