ANYLOAD / 102DS / Double-Ended Shear Beam Load Cell

ANYLOAD / 102DS / Double-Ended Shear Beam Load Cell

Capacity: 5 Klb, 10 Klb, 15 Klb, 20 Klb, 30 Klb, 40 Klb, 50 Klb, 60 Klb, 75 Klb, 100 Klb, 150 Klb, 200 Klb
Material: Stainless steel
Type: Double-Ended Shear Beam
Protection Rating: IP68

Categories: , ,
Tags: ,

Description

Models

102DS-5Klb, 102DS-10Klb, 102DS-15Klb, 102DS-20Klb, 102DS-30Klb, 102DS-40Klb, 102DS-50Klb, 102DS-60Klb, 102DS-75Klb, 102DS-100Klb, 102DS-150Klb, 102DS-200Klb

Features

  • Material: Stainless Steel
  • Rated Capacities: 5Klb, 10Klb, 15Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request

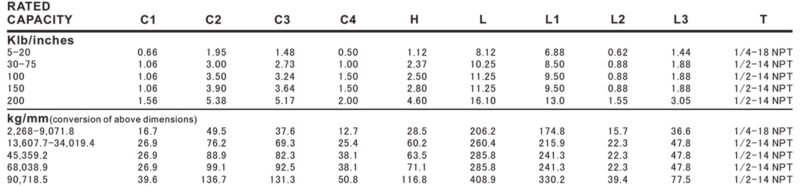

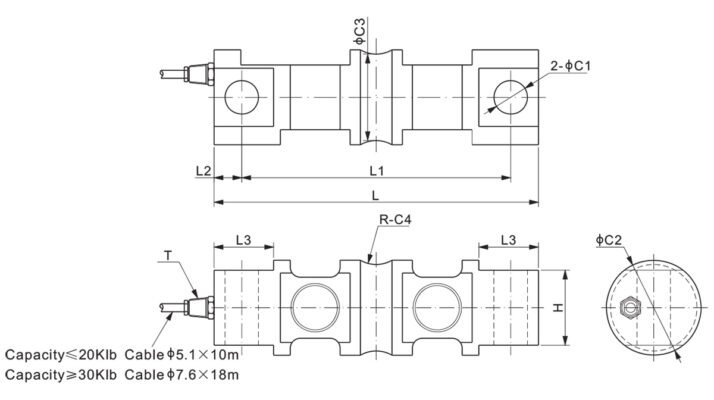

Dimensions

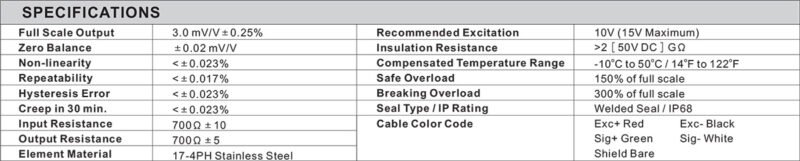

Specifications
