Description

Models

102EH-1Klb, 102EH-1.5Klb, 102EH-2.5Klb, 102EH-5Klb, 102EH-10Klb, 102EH-15Klb, 102EH-20Klb, 102EH-25Klb, 102EH-35Klb, 102EH-50Klb, 102EH-60Klb, 102EH-75Klb, 102EH-100Klb, 102EH-125Klb, 102EH-200Klb, 102EH-300Klb

Features

• Material: Alloy steel
• Rated Capacities: 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 25Klb, 35Klb, 50Klb, 60Klb, 75Klb,100Klb, 125Klb, 200Klb, 300Klb
• Full Scale Output: 3mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

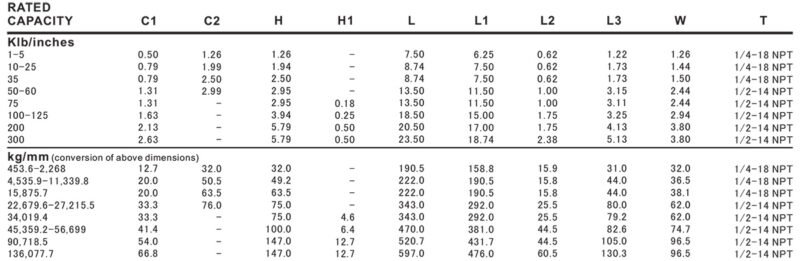

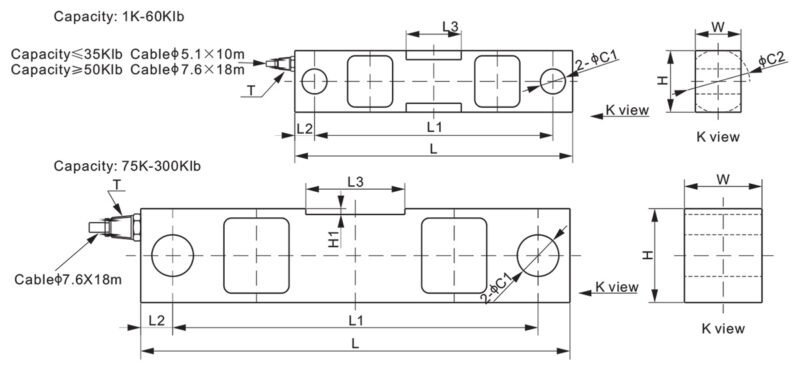

Dimensions

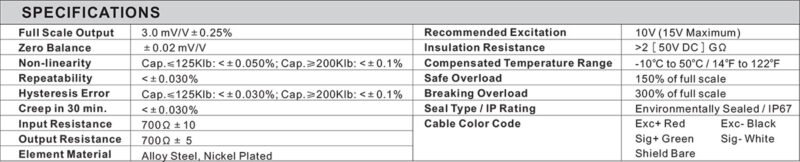

Specifications
