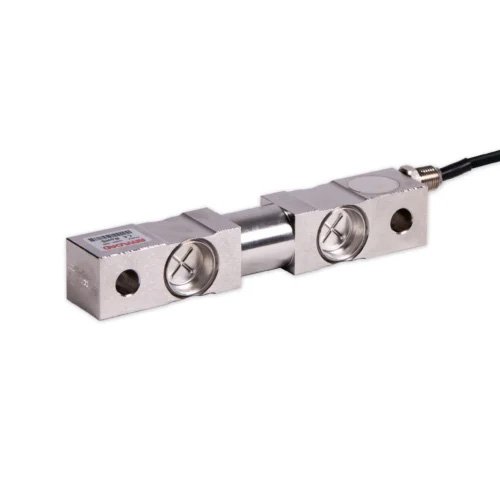

ANYLOAD / 102ES / Double-Ended Shear Beam Load Cell

ANYLOAD / 102ES / Double-Ended Shear Beam Load Cell

Capacity: 2.5 Klb, 5 Klb, 10 Klb, 15 Klb, 25 Klb, 35 Klb, 50 Klb
Material: Stainless steel
Type: Double-Ended Shear Beam
Protection Rating: IP68

Categories: , ,
Tags: ,

Description

Models

102ES-2.5Klb, 102ES-5Klb, 102ES-10Klb, 102ES-15Klb, 102ES-25Klb, 102ES-35Klb, 102ES-50Klb, 102ES-60Klb, 102ES-75Klb

Features

  • Material: Stainless steel
  • Rated Capacities: 2.5Klb, 5Klb, 10Klb, 15Klb, 25Klb, 35Klb, 50Klb
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request

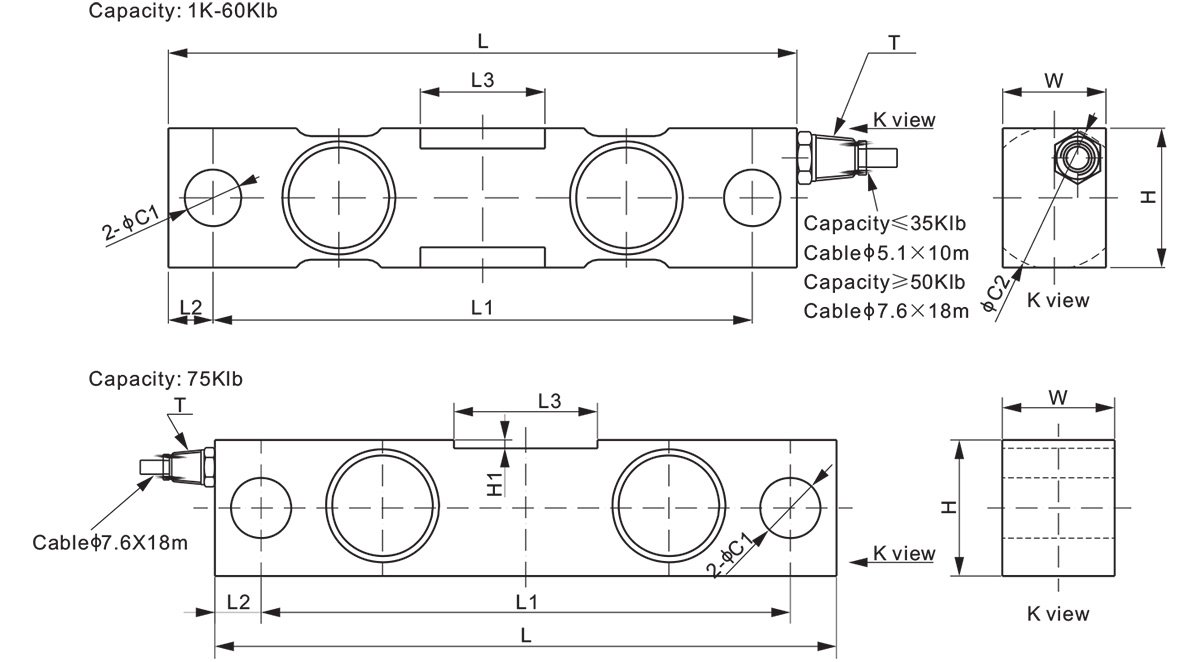

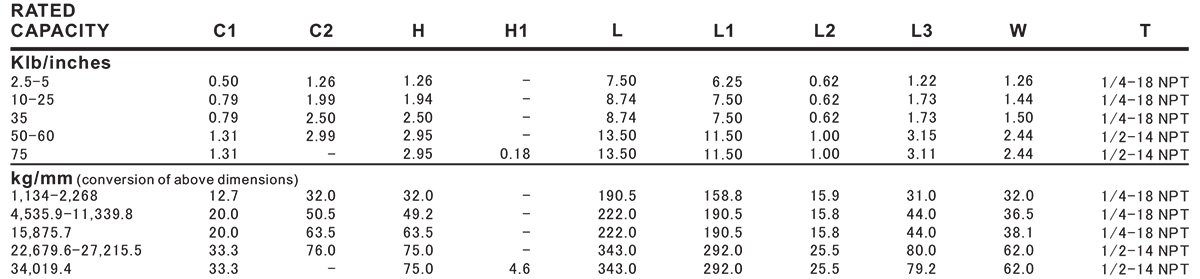

Dimensions

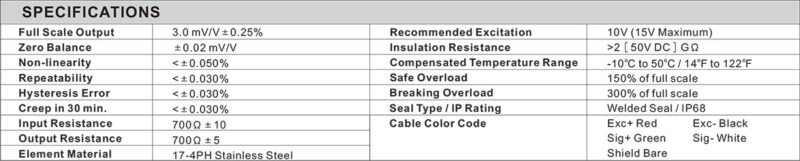

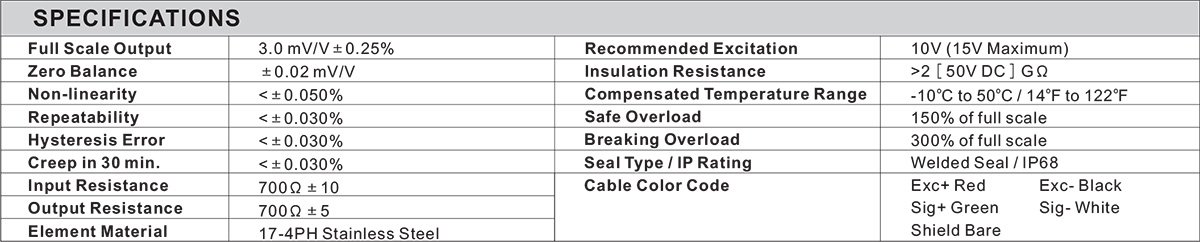

Specifications
