Description

Models

102MH-AA-22Klb-24A

Features

• Designed for On-Board Weighing applications
• Side force and uplift protection
• Highly corrosion resistant
• Element Material: Alloy steel, Nickel Plated, Black Electrophoretic Plating
• Rated Capacity: 22Klb
• Full Scale Output: 2.0mV/V ± 0.5%
• Safe Overload: 150% of full scale
• Breaking Overload: 300% of full scale
• IP Rating: IP67
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

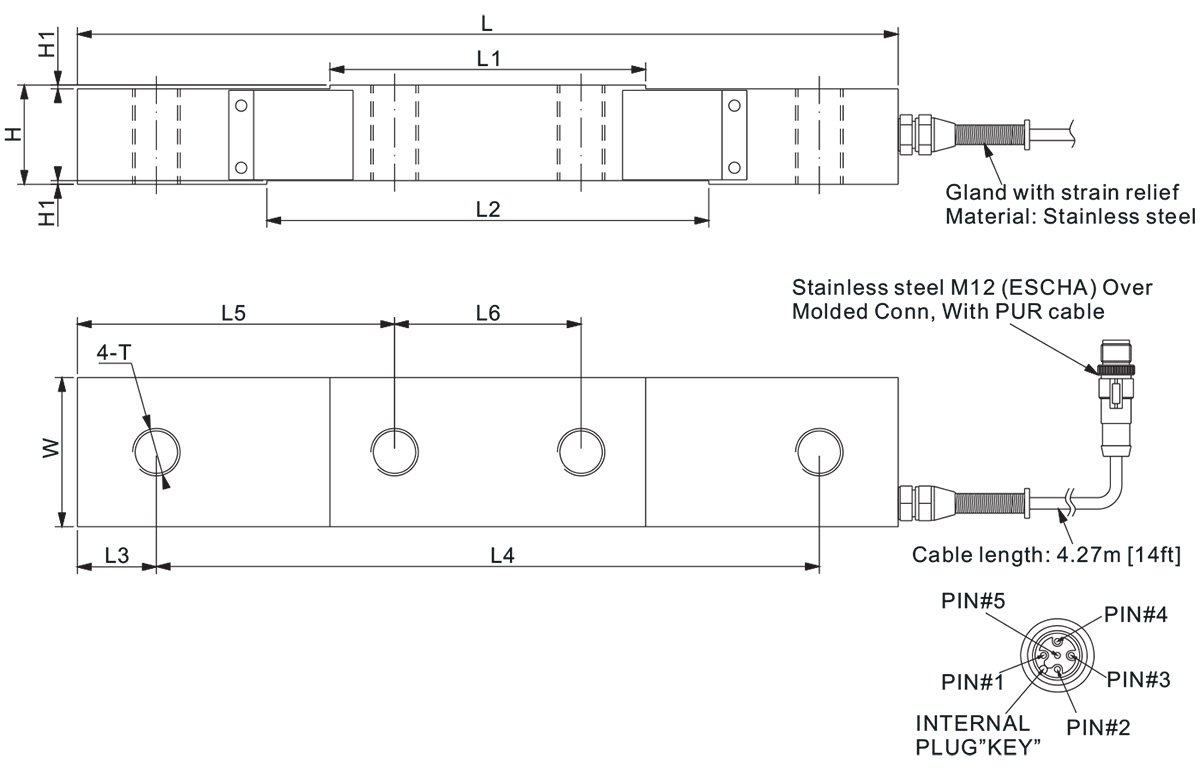

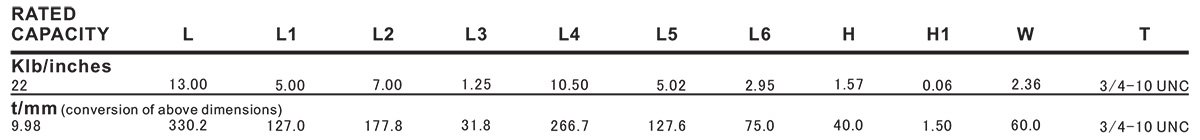

Dimensions

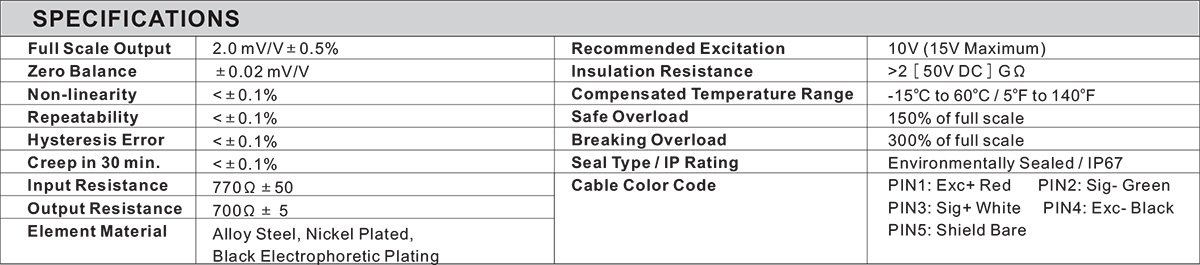

Specifications
