Description

Models

102TH-25Klb, 102TH-40Klb, 102TH-SE50Klb, 102TH-SE60Klb, 102TH-SE75Klb, 102TH-50Klb, 102TH-60Klb, 102TH-75Klb, 102TH-100Klb, 102TH-125Klb

Features

• Material: Alloy steel
• Rated Capacities: 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125Klb
• Full Scale Output: 3mV/V ± 0.25%
• Safe Overload: 150% of full scale
• Breaking Overload: 300% of full scale
• IP Rating: IP67
• NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125Klb
• OIML MAA C4, Y=15 000 certified from 11t-55t
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request
• Lightning Protection Version
• Interchangeable with Rice Lake RL75040

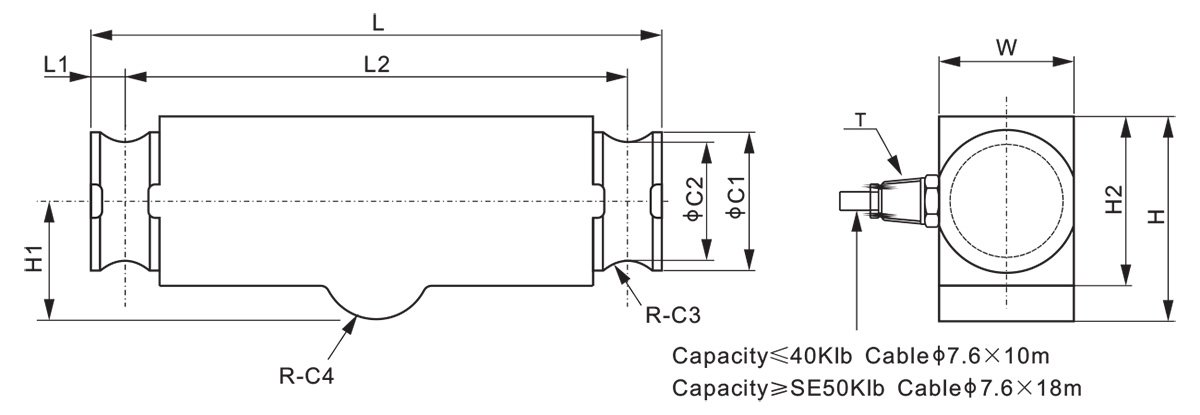

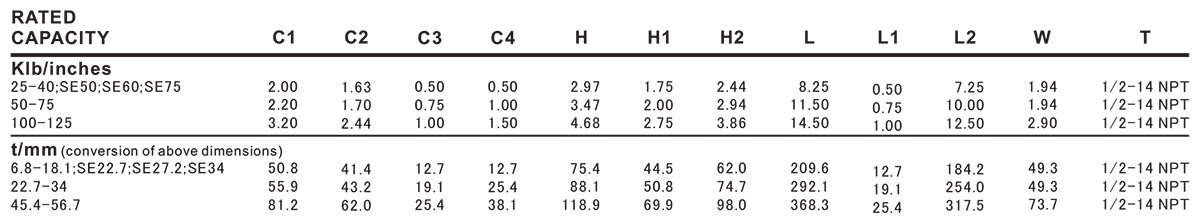

Dimensions

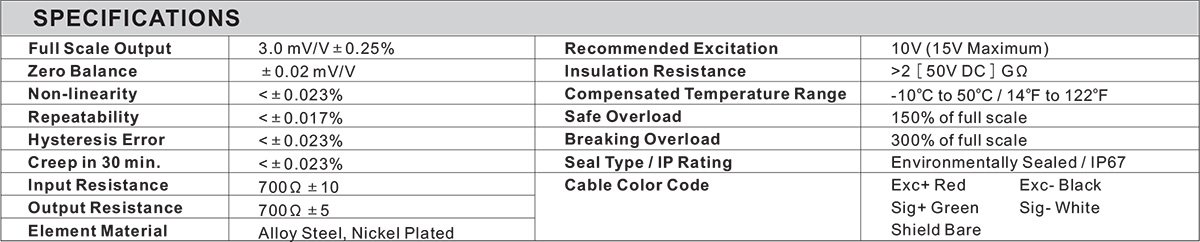

Specifications
