Description

Models

102THM5-(50-75)Klb

Features

• Assembles: 102TH double ended beam load cell
• Material: Alloy steel
• Capacities: 50-75Klb
•  NTEP certified load cells from 25Klb-125Klb
• OIML certified load cells from 11t-55t
• CE , RoHS and Ex certified load cells
• Center pivoted, end-loaded and completely self-centering
• Multi-directional movements in the horizontal plane
• EL-29 End Links provide optimal loading conditions for the load cell
• No check rods required
• Load cell not included

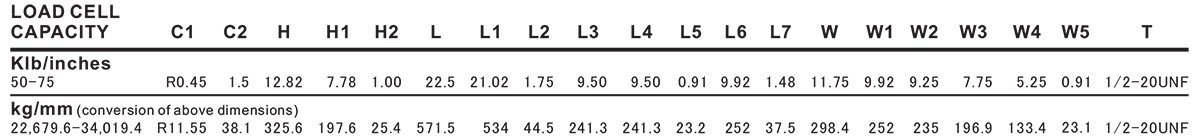

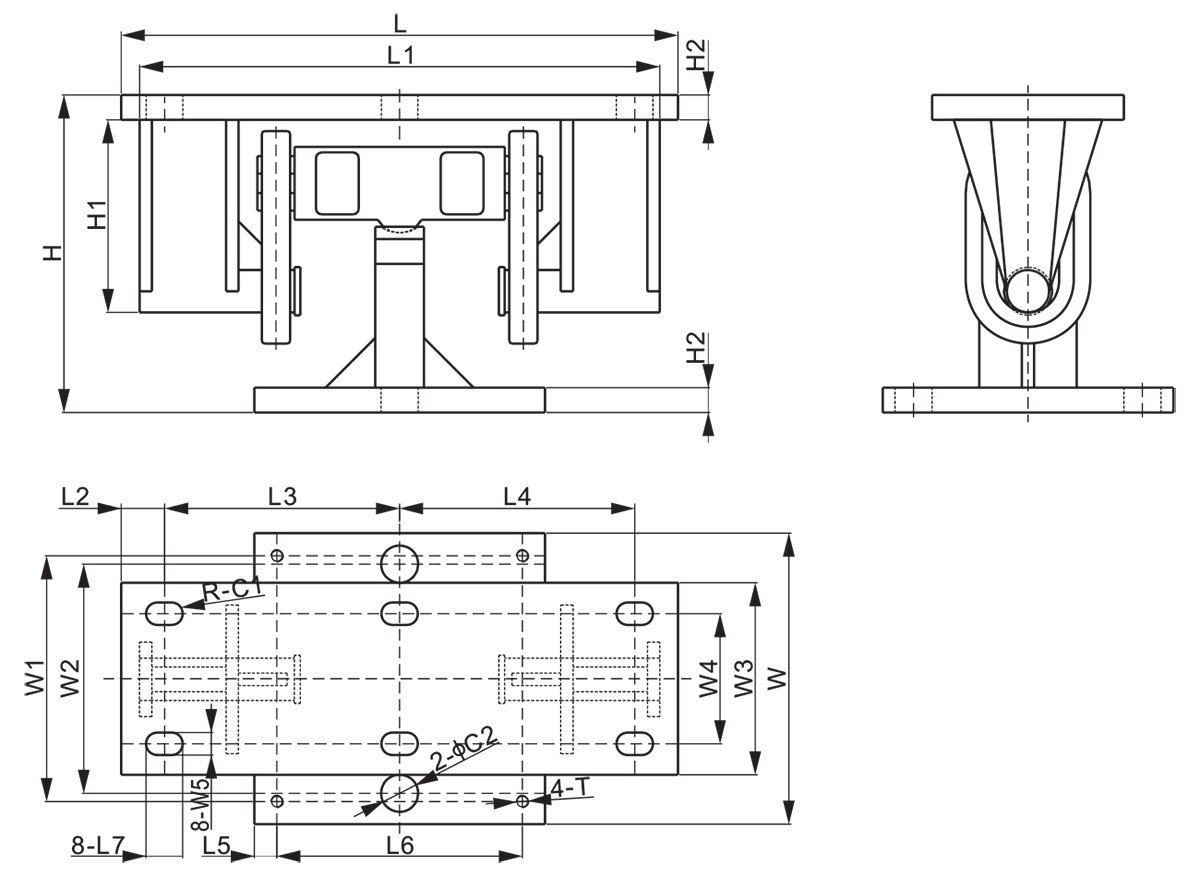

Dimensions
