Description

Models

106CS-10t-YZ, 106CS-15t-YZ, 106CS-25t-YZ, 106CS-40t-YZ, 106CS-50t-YZ, 106CS-100t-YZ, 106CS-25Klb-YZ, 106CS-50Klb-YZ, 106CS-100Klb-YZ, 106CS-200Klb-YZ

Features

• Material: Stainless steel
• Rated Capacities: 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t
• Full Scale Output: 1.75mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• CE and RoHS certified
• ATEX, FM, IECEx available upon request

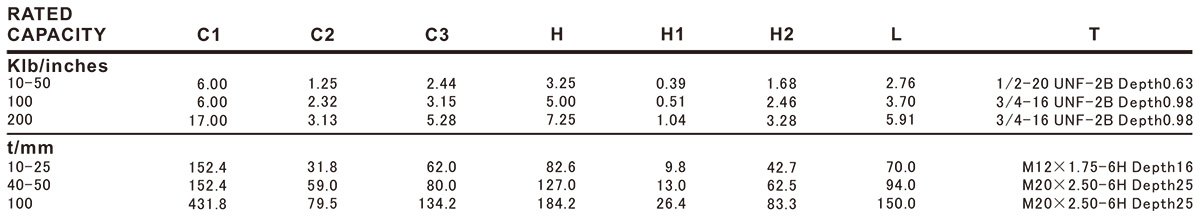

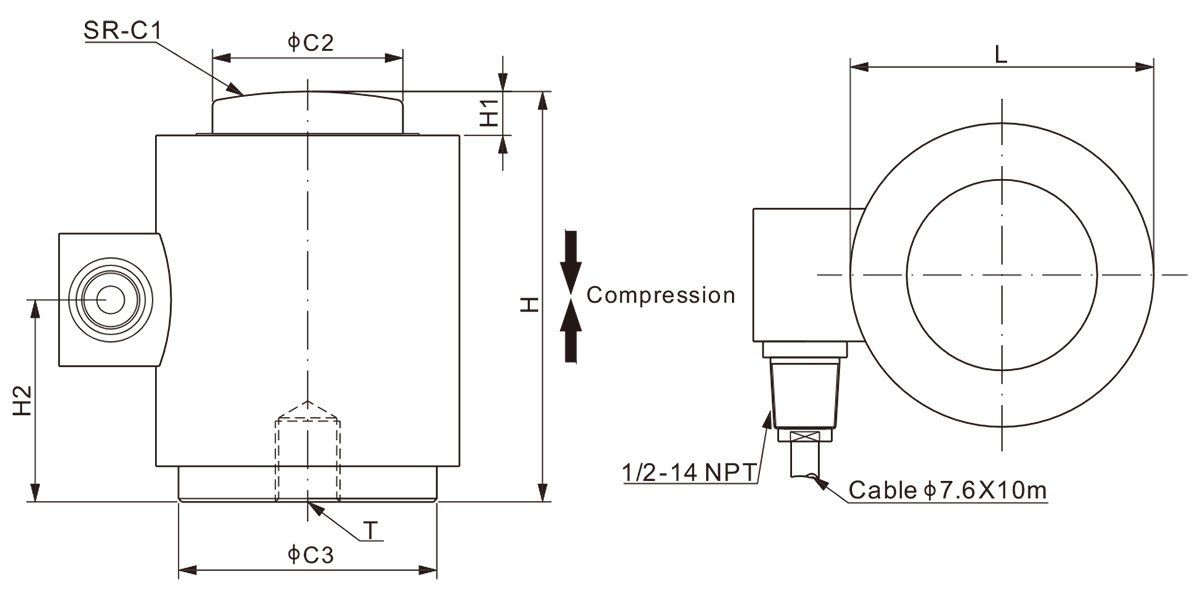

Dimensions

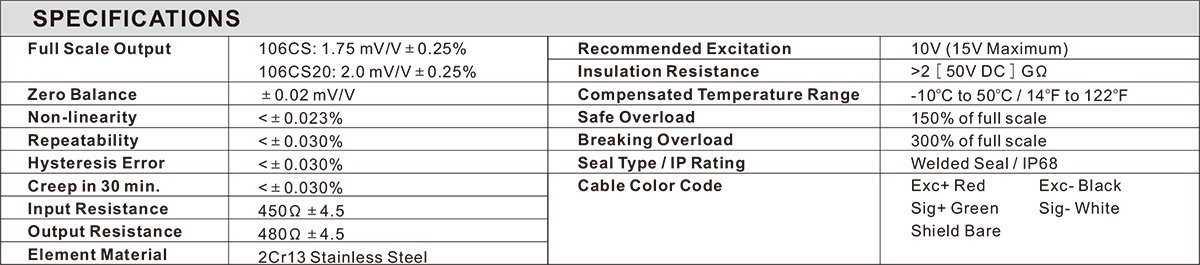

Specifications
