Description

Models

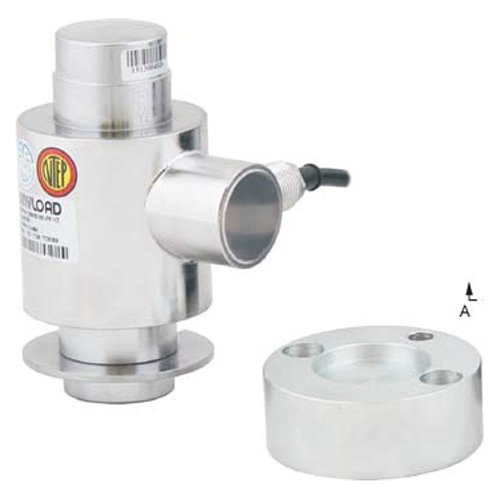

106HS-20t-YZ, 106HS-30t-YZ, 106HS-40t-YZ

Features

• Material: Stainless steel
• Rated Capacities: 20t, 30t, 40t
• Full Scale Output: 2mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload:  300%
• IP Rating: IP68
• NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
• OIML  MAA C3, Y=16 000 certified from 10t-50t
• CE and RoHS certified
• ATEX, FM, IECEx available upon request
• Interchangeable with HBM C16

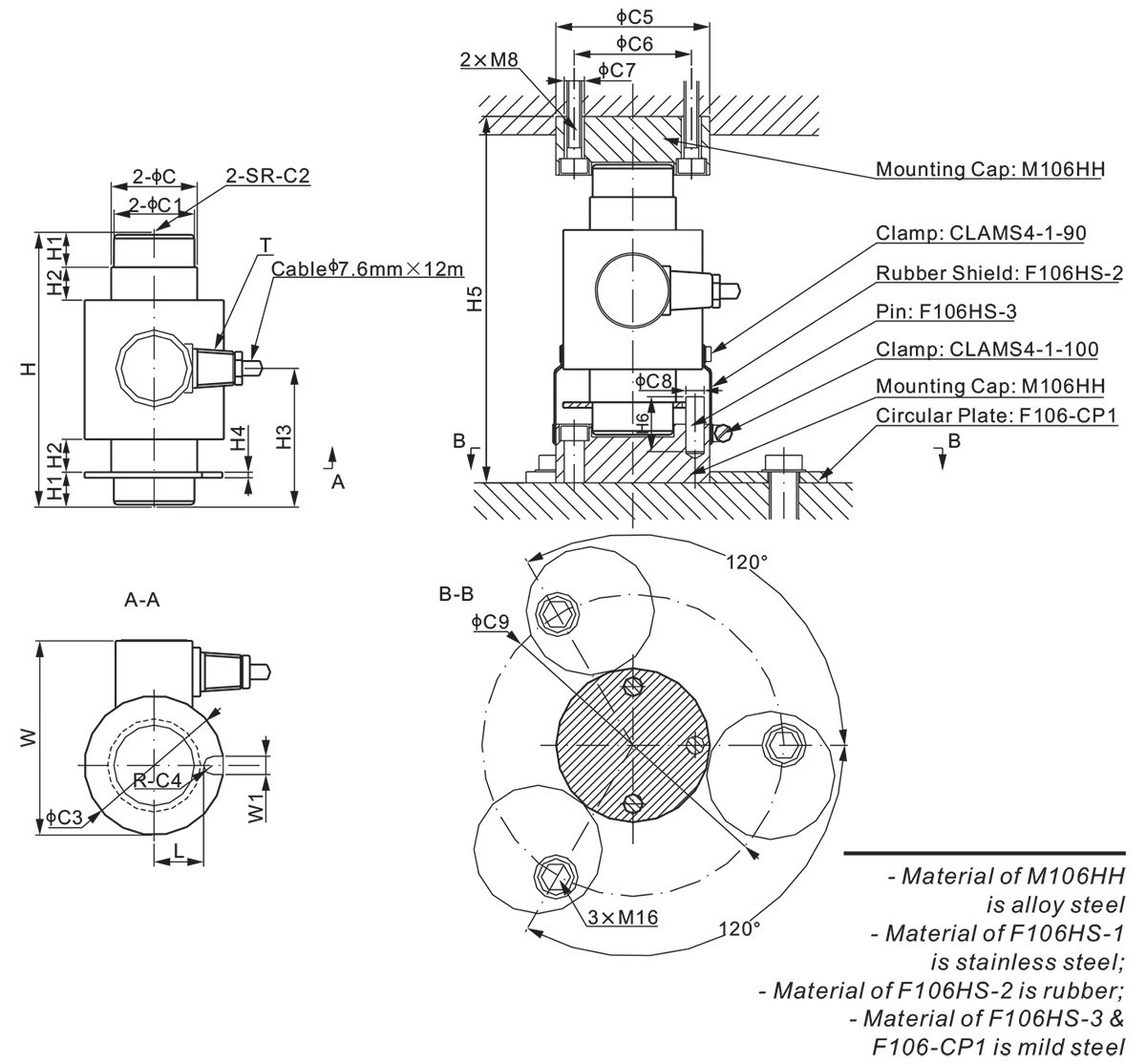

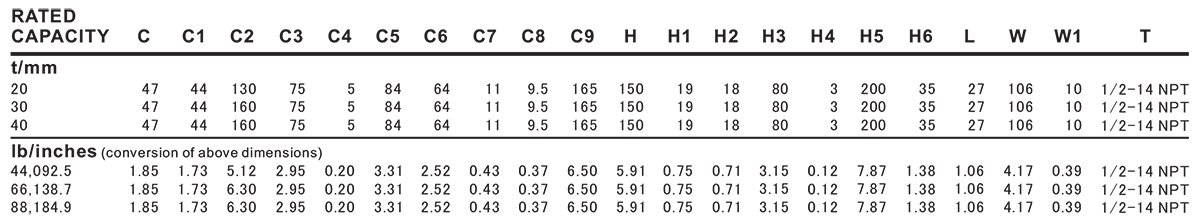

Dimensions

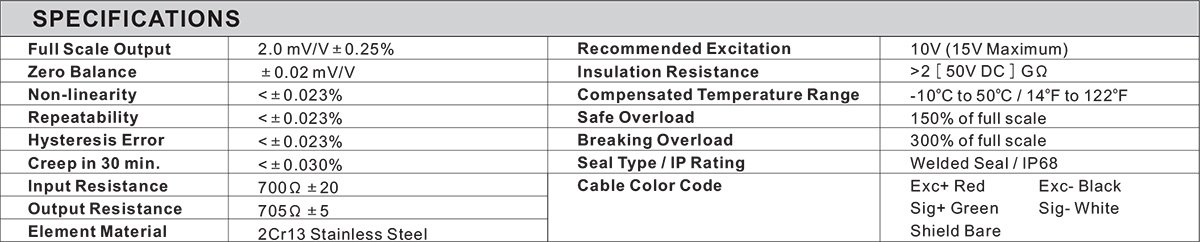

Specifications
