Description

Models

108BA-3kg, 108BA-6kg, 108BA-03-6kg, 108BA-7kg, 108BA-10kg, 108BA-15kg, 108BA-20kg, 108BA-30kg, 108BA-35kg, 108BA-40kg, 108BA-W1-40kg, 108BA-50kg, 108BA-60kg, 108BA-75kg, 108BA-100kg, 108BA-150kg

Features

• Material: Aluminum, Clear Anodized
• Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg
• Full Scale Output: 2mV/V ± 10%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP66
• 5 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
• 50 kg up to & including 150 kg: Certified up to OIML MAA C5, Y=12300
• NTEP 1:5000 Class III, Single Cell
• CE, RoHS, and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

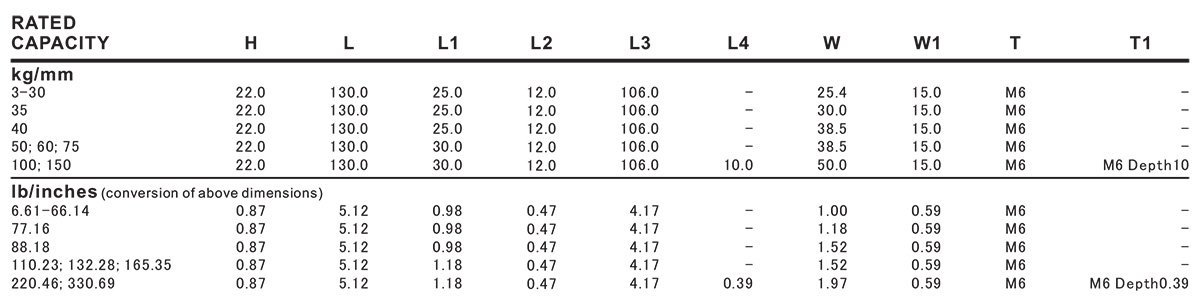

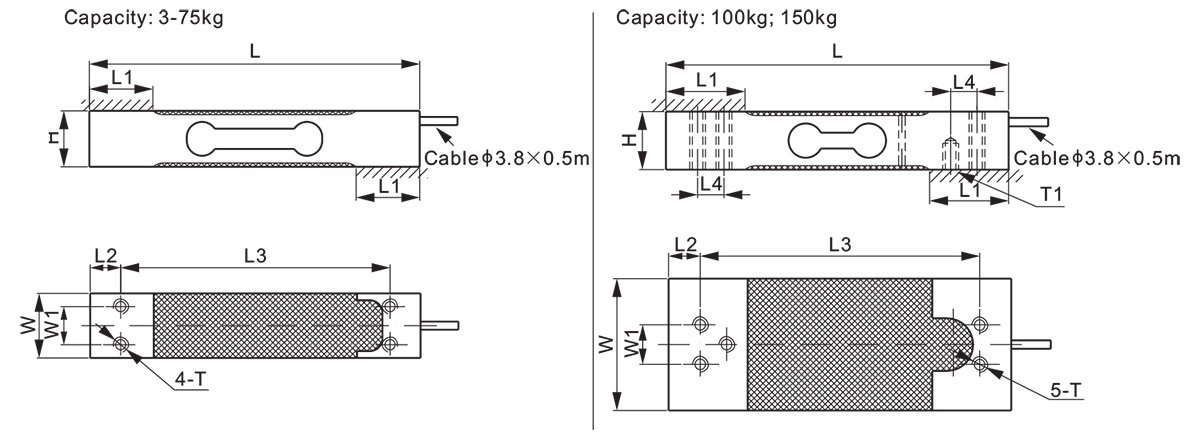

Dimensions

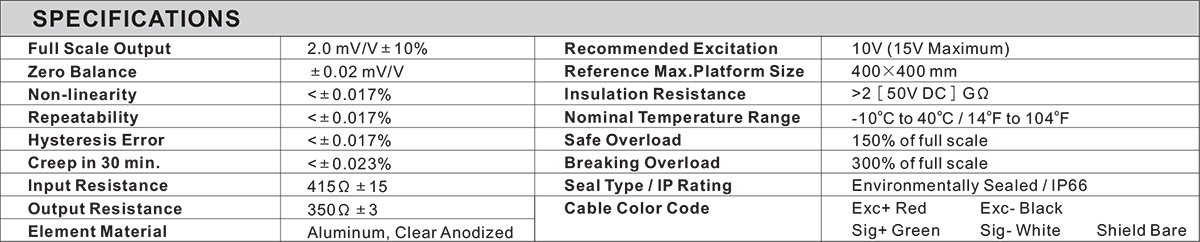

Specifications
