ANYLOAD / 108JA-21 / Single Point Load Cell

Capacity: 50kg, 75kg, 100kg, 150kg
Material: Aluminum, Clear Anodized
Type: Single Point
Protection Rating: IP66

Description

Models

108JA-30kg-21, 108JA-50kg-21, 108JA-75kg-21, 108JA-100kg-21, 108JA-150kg-21

Features

  • Material: Aluminum, Clear Anodized
  • Rated Capacities: 50kg, 75kg, 100kg, 150kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • 30 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
  • 50 kg up to & including 150 kg: Certified up to OIML MAA C5, Y=12300
  • CE and RoHS certified

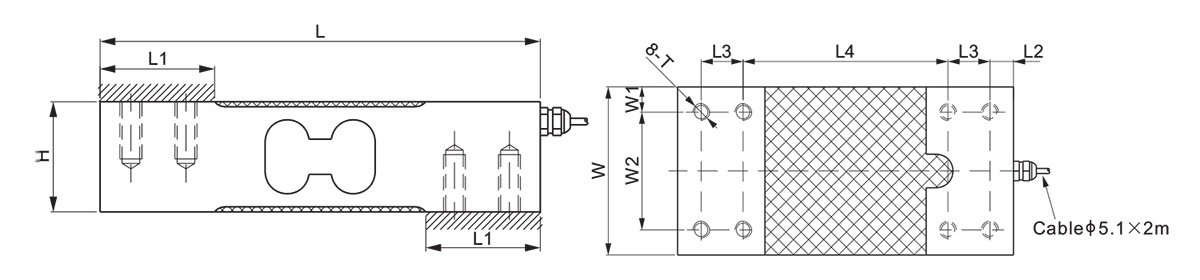

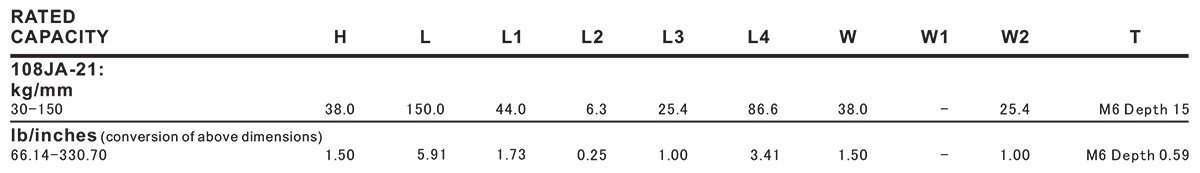

Dimensions

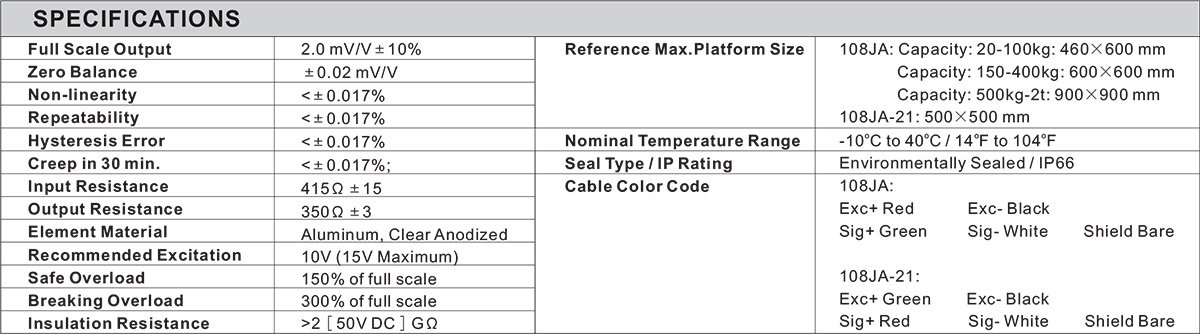

Specifications
