Description

Models

108JA-20kg-A2, 108JA-50kg-A2, 108JA-LE60kg-A2, 108JA-LE75kg-A2, 108JA-LE100kg-A2, 108JA-SE150kg-A2, 108JA-SE200kg-A2, 108JA-SE300kg-A2, 108JA-SE400kg-A2

Features

• Material: Aluminum
• Rated Capacities: 20kg, 50kg, LE60kg, LE75kg, LE100kg, SE150kg, SE200kg, SE300kg, SE400kg
• Full Scale Output: 2mV/V ± 10%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP66
• NTEP 1:4 000 Class III, Single Cell certified from 200kg-2t
• OIML C3, Y=4 300 certified from 50kg-400kg
• OIMLMAA C4, Y=4 000 certified from 500kg-2t
• CE and RoHS certified

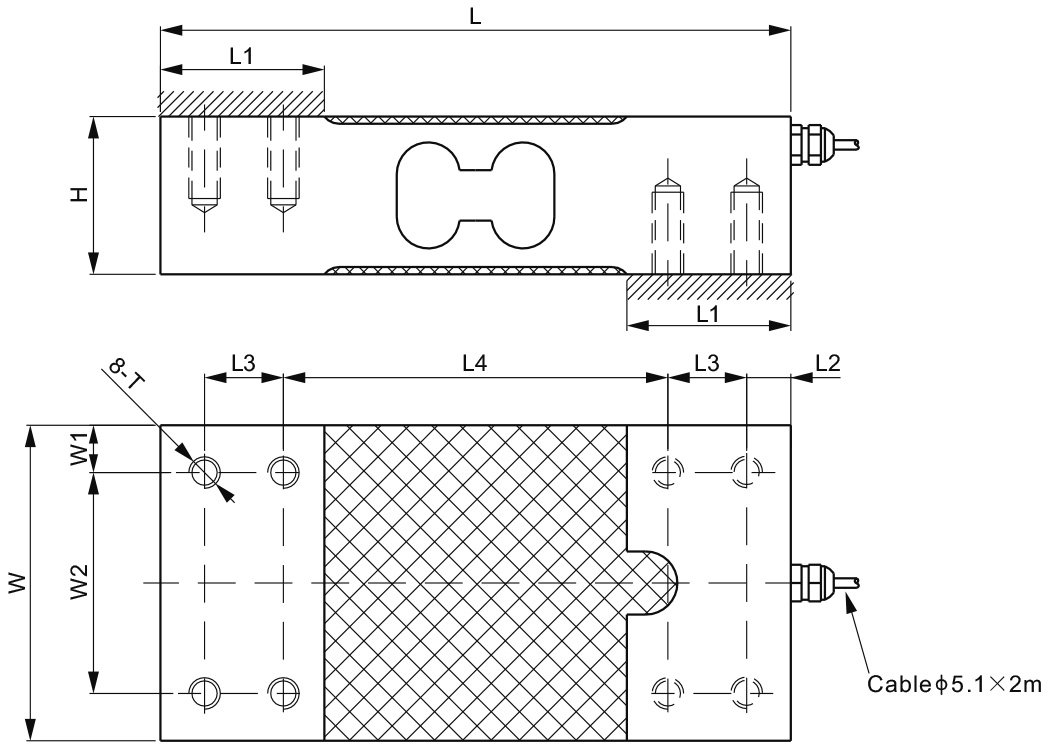

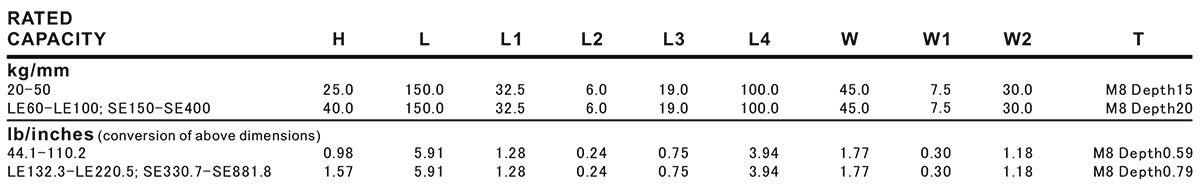

Dimensions

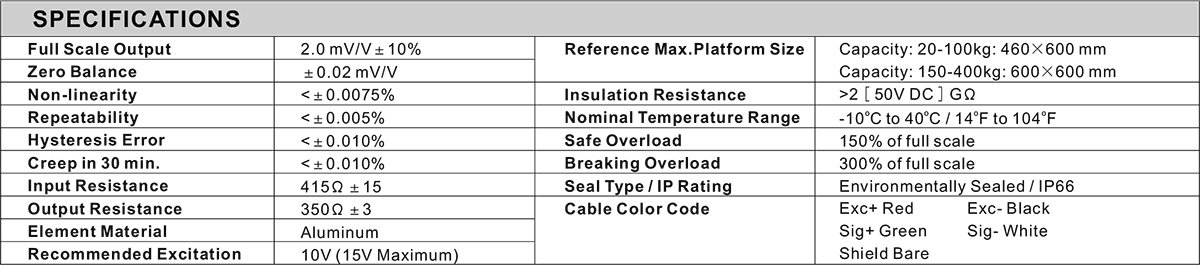

Specifications
