Description

Models

108JA-20kg, 108JA-50kg, 108JA-60kg, 108JA-LE60kg, 108JA-75kg, 108JA-LE75kg, 108JA-100kg, 108JA-LE100kg, 108JA-SE150kg, 108JA-150kg, 108JA-SE200kg, 108JA-200kg, 108JA-SE300kg, 108JA-300kg, 108JA-SE400kg, 108JA-400kg, 108JA-500kg, 108JA-SE600kg, 108JA-750kg, 108JA-1t, 108JA-1.5t, 108JA-2t

Features

• Material: Aluminum, Clear Anodized
• Rated Capacities: 20kg, 50kg, 60kg, LE60kg, 75kg, 100kg, LE100kg, 150kg, SE150kg, 200kg, SE200kg, 300kg, SE300kg, 400kg, SE400kg, 500kg, SE600kg, 750kg, 1t, 1.5t, 2t
• Full Scale Output: 2mV/V ± 10%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP66
• NTEP 1:4 000 Class III, Single Cell certified from 200kg-2t
• 20 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
• 50 kg up to 500 kg: Certified up to OIML MAA C5, Y=12300
• 500 kg up to & including 2t: Certified up to OIML MAA C4, Y=4000
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request
• Higher Accuracy Available: 108JA-A2

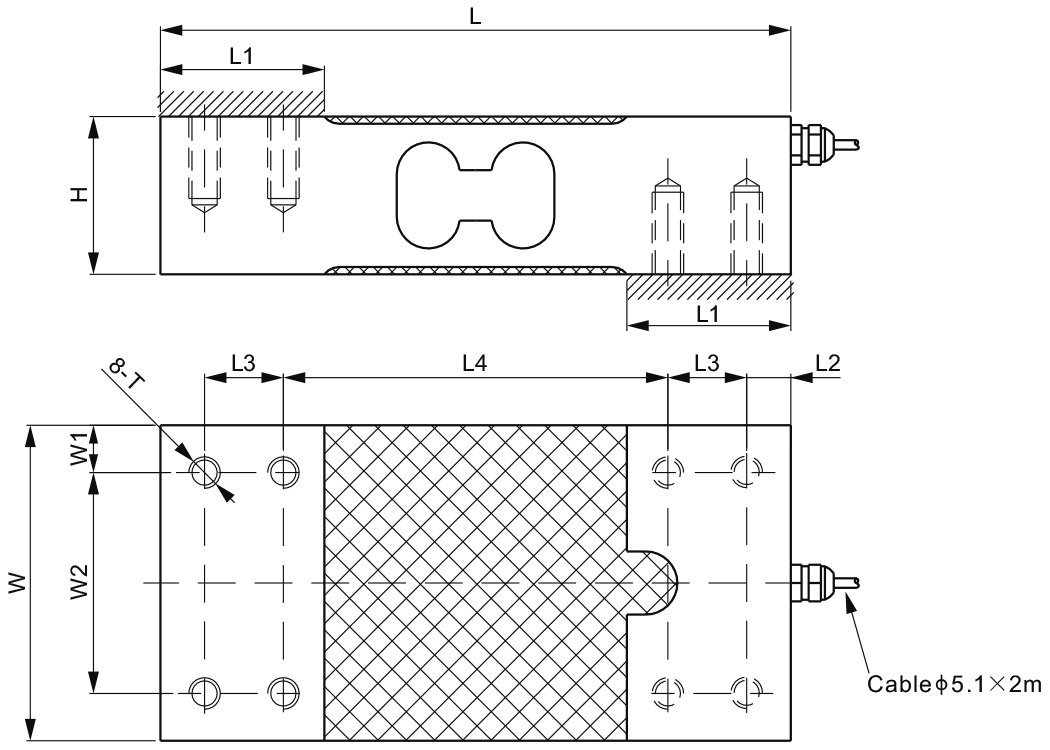

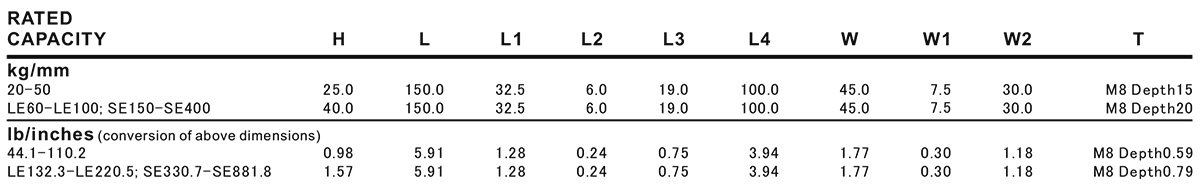

Dimensions

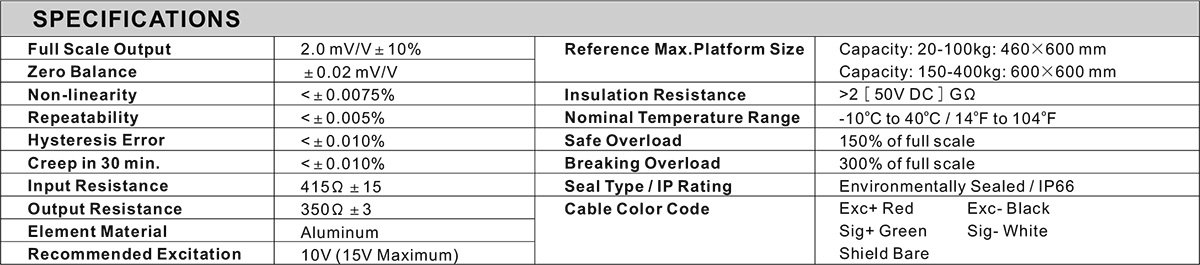

Specifications
