ANYLOAD / 108KSUN / Single Point Load Cell

Capacity: 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
Material: Stainless Steel
Type: Single Point
Protection Rating: IP66

Description

Models

108KSUN-4kg-YZ, 108KSUN-7kg-YZ, 108KSUN-10kg-YZ, 108KSUN-15kg-YZ, 108KSUN-20kg-YZ, 108KSUN-30kg-YZ, 108KSUN-50kg-YZ, 108KSUN-75kg-YZ, 108KSUN-100kg-YZ, 108KSUN-150kg-YZ

Features

  • Material: Stainless steel
  • Thread: Imperial
  • Rated Capacities: 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified

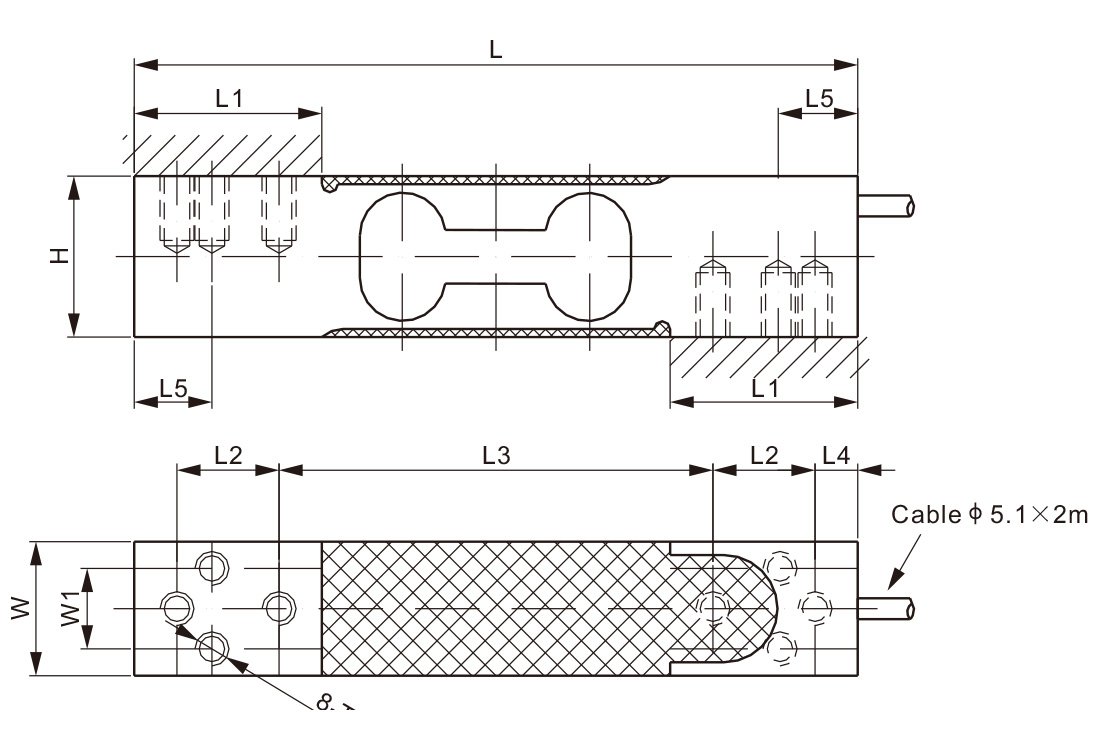

Dimensions

Specifications
