Description

Models

108MA-50kg, 108MA-75kg, 108MA-100kg, 108MA-150kg, 108MA-200kg, 108MA-250kg, 108MA-300kg, 108MA-500kg, 108MA-635kg, 108MA-660kg, 108MA-1000kg, 108MA-50kg-A1. 108MA-75kg-A1, 108MA-100kg-A1, 108MA-150kg-A1, 108MA-200kg-A1, 108MA-250kg-A1, 108MA-300kg-A1, 108MA-500kg-A1, 108MA-635kg-A1, 108MA-660kg-A1, 108MA-1000kg-A1

Features

• Material: Aluminum, Clear Anodized
• Thread: Metric
• Rated Capacities: 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
• Full Scale Output: 2mV/V ± 10%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP66
• NTEP 1:4000 Class III, Single Cell certified from 200kg-2t
• 50 kg up to 500 kg: Certified up to OIML MAA C5, Y=12300
• 500 kg up to & including 660kg: Certified up to OIML MAA C4, Y=4000
• CE and RoHS certified

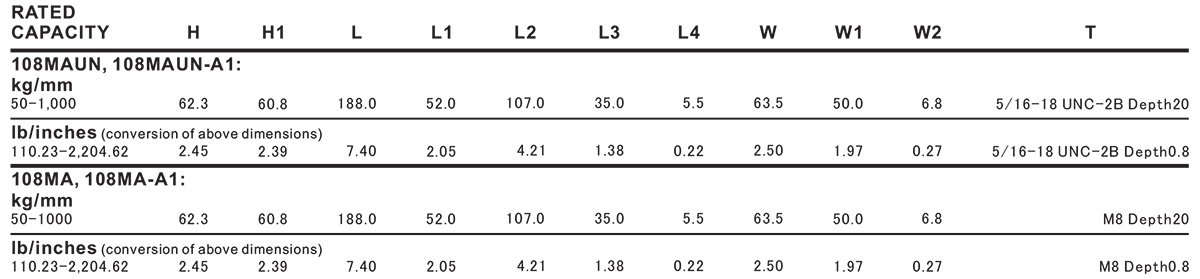

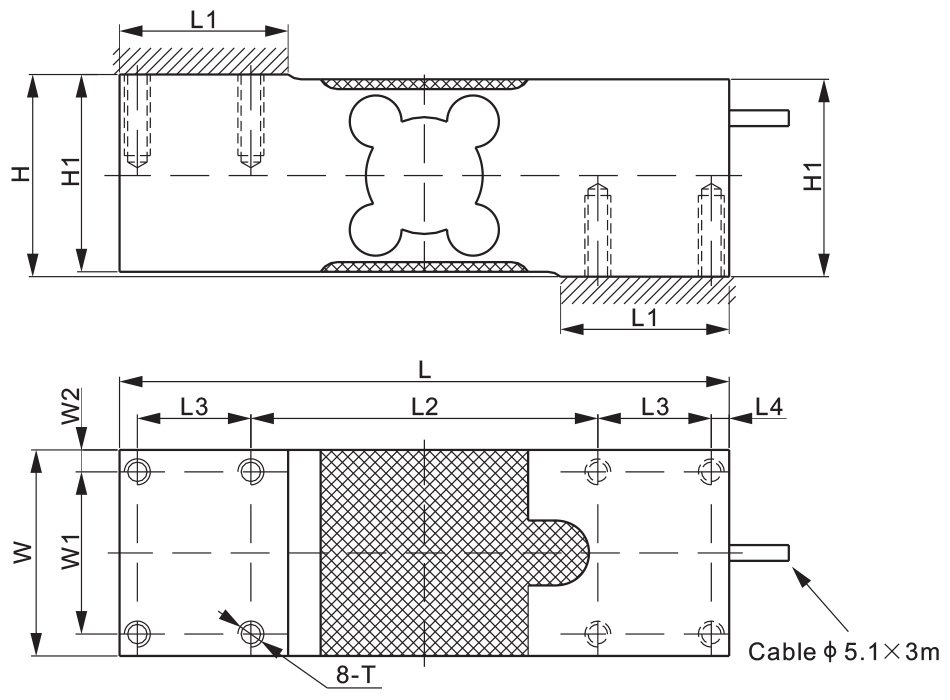

Dimensions

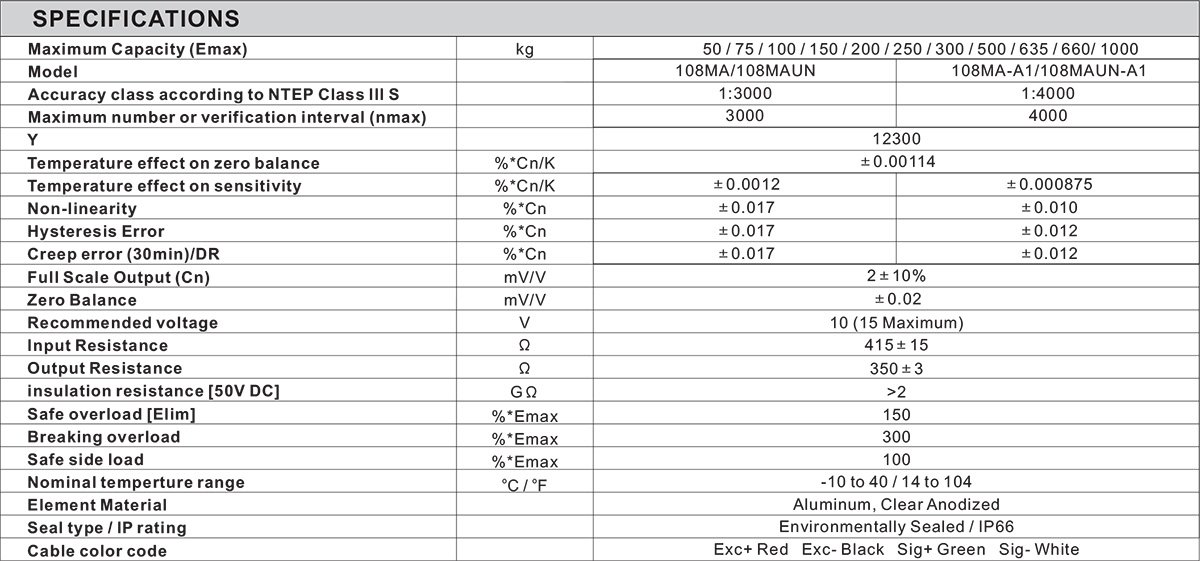

Specifications
