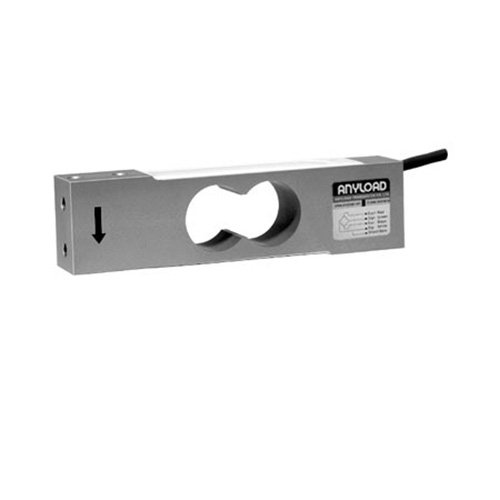

Description

Models

108TAUN-3kg, 108TAUN-5kg, 108TAUN-7kg, 108TAUN-10kg, 108TAUN-15kg, 108TAUN-20kg, 108TAUN-30kg, 108TAUN-50kg, 108TAUN-75kg, 108TAUN-100kg, 108TAUN-150kg, 108TAUN-200kg, 108TAUN-5kg-A1, 108TAUN-7kg-A1, 108TAUN-10kg-A1, 108TAUN-15kg-A1, 108TAUN-20kg-A1, 108TAUN-30kg-A1, 108TAUN-50kg-A1, 108TAUN-75kg-A1, 108TAUN-100kg-A1, 108TAUN-150kg-A1, 108TAUN-200kg-A1, 108TAUN-5kg-A2, 108TAUN-7kg-A2, 108TAUN-10kg-A2, 108TAUN-15kg-A2, 108TAUN-20kg-A2, 108TAUN-30kg-A2, 108TAUN-50kg-A2, 108TAUN-75kg-A2, 108TAUN-100kg-A2, 108TAUN-150kg-A2, 108TAUN-200kg-A2

Features

• Material: Aluminum, Clear Anodized
• Thread: Imperial
• Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg
• Full Scale Output: 2mV/V ± 10%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP66
• NTEP 1:5 000 Class III, Single Cell certified from 15kg-150kg
• 3 kg: Certified up to OIML C3
• 5 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
• 50 kg up to & including 200 kg: Certified up to OIML MAA C5, Y=12300
• CE and RoHS certified

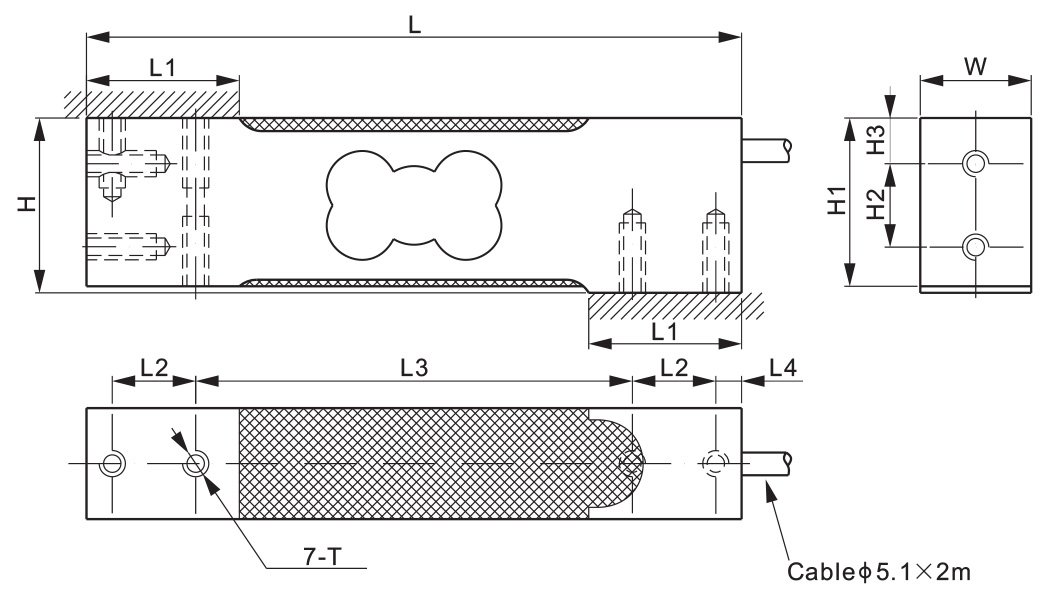

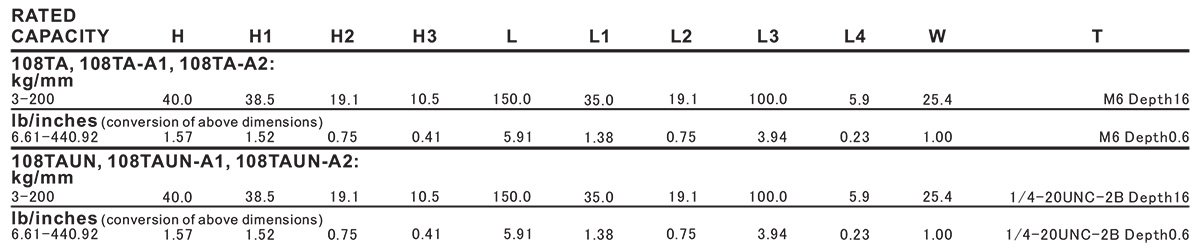

Dimensions

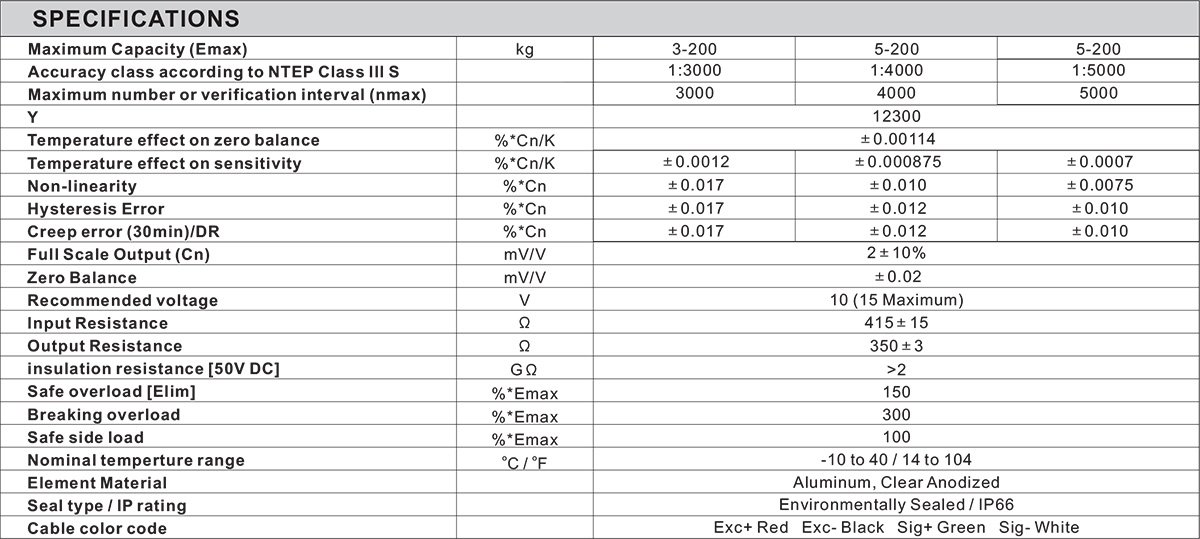

Specifications
