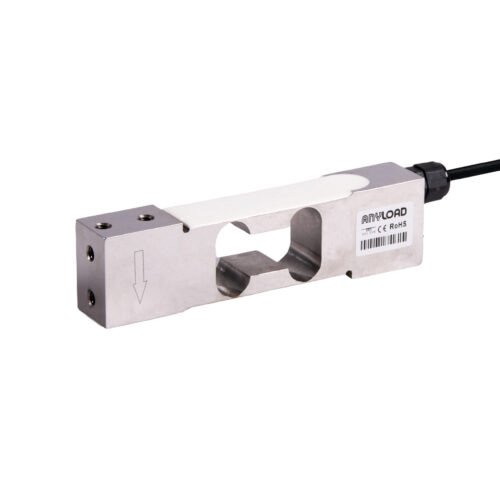

Description

Models

108TS-5kg-YZ, 108TS-10kg-YZ, 108TS-15kg-YZ, 108TS-20kg-YZ, 108TS-30kg-YZ, 108TS-50kg-YZ, 108TS-75kg-YZ, 108TS-100kg-YZ, 108TS-150kg-YZ

Features

• Material: Stainless steel
• Thread: Metric
• Rated Capacities: 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
• Full Scale Output: 2mV/V ± 10%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP66
• CE and RoHS certified

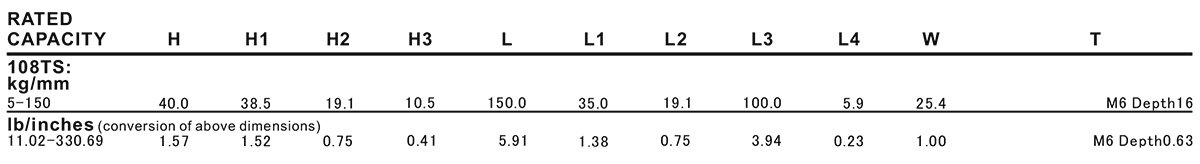

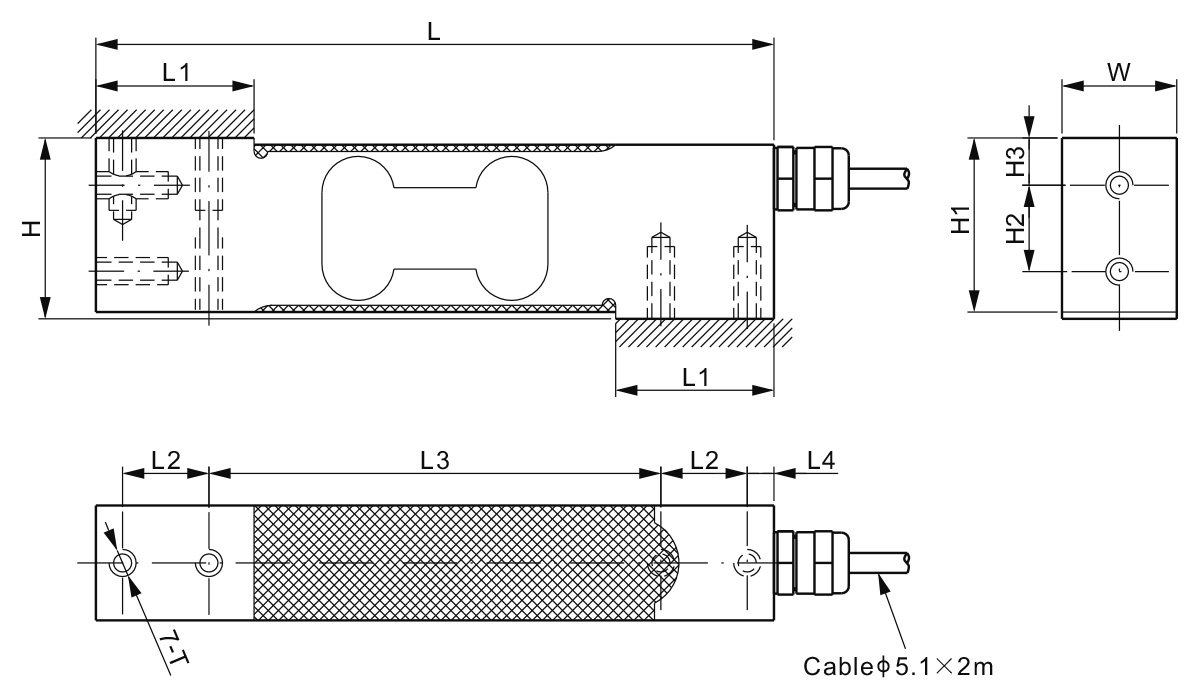

Dimensions

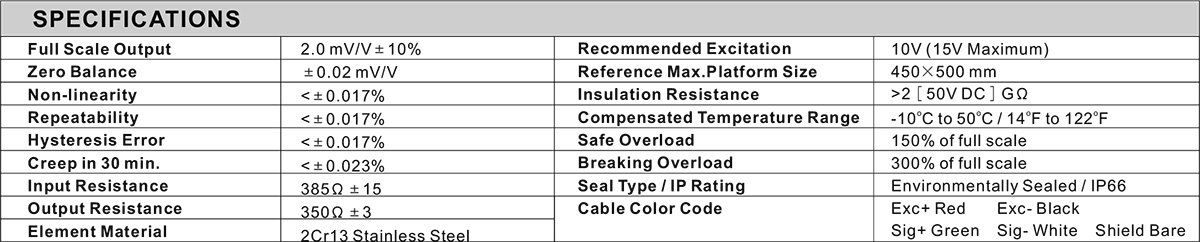

Specifications
