Description

Models

108UA-50kg, 108UA-100kg, 108UA-150kg, 108UA-200kg, 108UA-300kg, 108UA-500kg, 108UA-635kg, 108UA-700kg, 108UA-1t

Features

• Material:Aluminum, Clear Anodized
• Thread: Metric
• Rated Capacities: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t
• Full Scale Output: 2mV/V ± 10%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• NTEP 1:4 000 Class III, Single Cell certified from 200kg-1t
• 30 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
• 50 kg up to 500 kg: Certified up to OIML MAA C5, Y=12300
• 500 kg up to & including 1.5t: Certified up to OIML MAA C4, Y=4000
• CE and RoHS certified

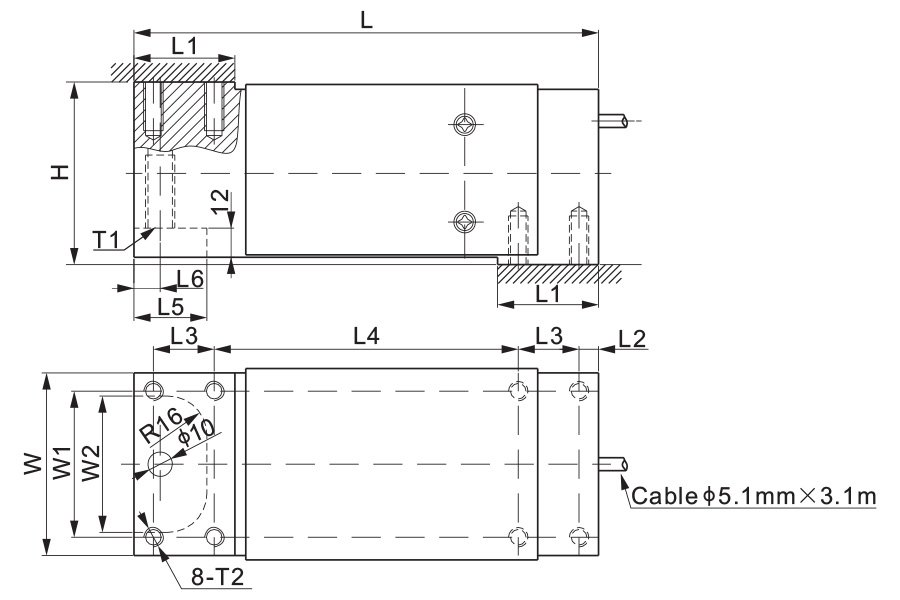

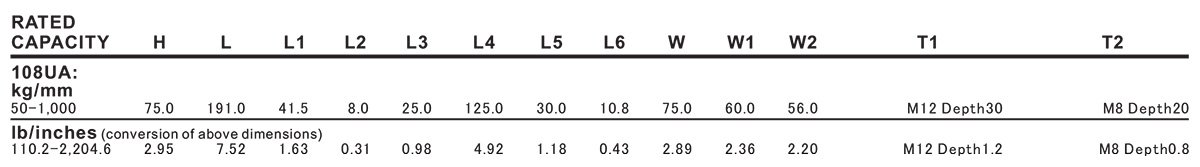

Dimensions

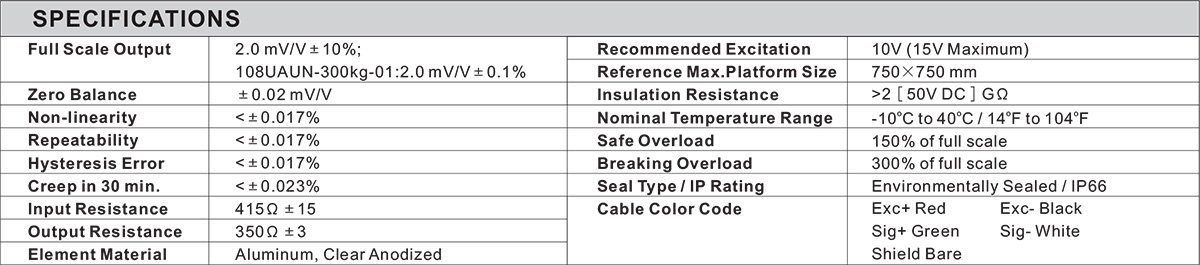

Specifications
