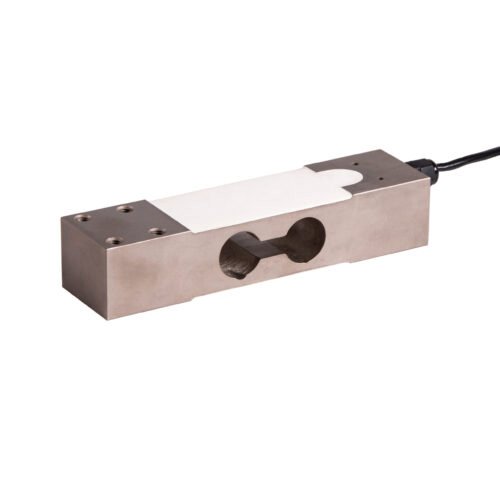

ANYLOAD / 108WH / Single Point Load Cell

Capacity: 300 kg, 400 kg, 500 kg, 750 kg, 1 t
Material: Stainless Steel
Type: Single Point
Protection Rating: IP66

Description

Models

108WH-300kg, 108WH-400kg, 108WH-500kg, 108WH-750kg, 108WH-1t

Features

  • Material: Alloy steel
  • Rated Capacities: 300kg, 400kg, 500kg, 750kg, 1t
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 200%
  • Breaking Overload: 400%
  • IP Rating: IP66
  • CE and RoHS certified

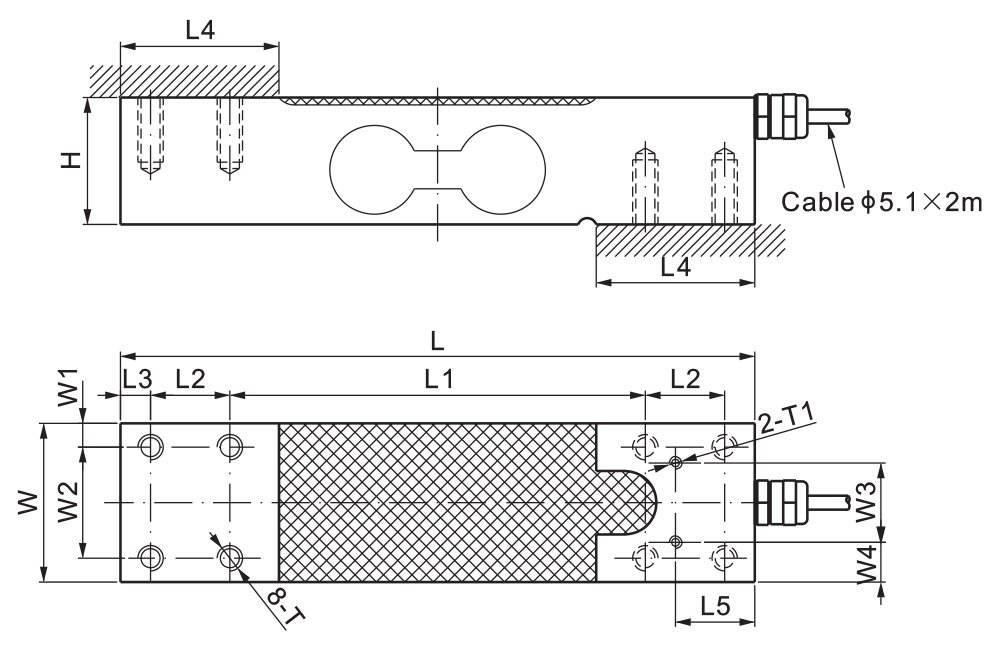

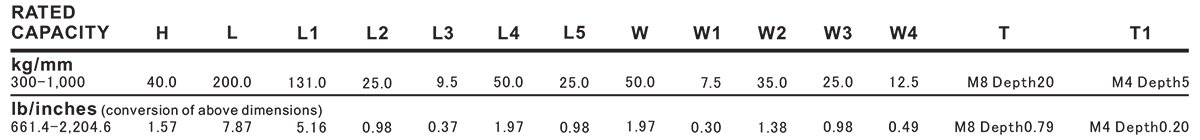

Dimensions

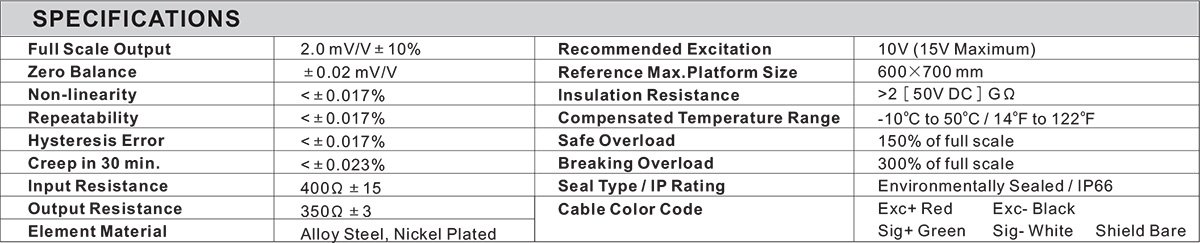

Specifications
