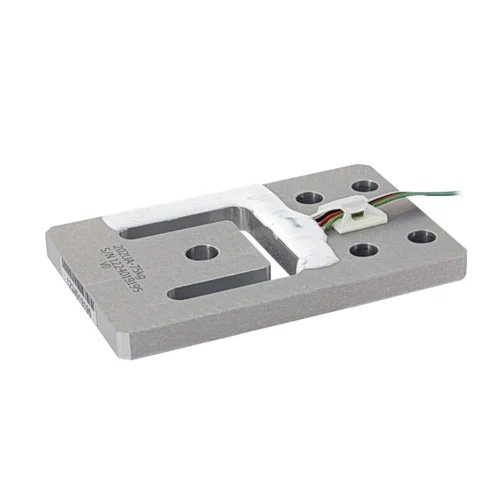

Description

Models

202UA-3.75kg, 202UA-3.75kg-02, 202UA-7.5kg, 202UA-7.5kg-02, 202UA-15kg, 202UA-15kg-02, 202UA-37.5kg, 202UA-37.5kg-02, 202UA-75kg, 202UA-75kg-02, 202UA-150kg, 202UA-150kg-02, 202UA-375kg, 202UA-375kg-02, 202UA-3.75kg-25A, 202UA-3.75kg-25A-02, 202UA-7.5kg-25A, 202UA-7.5kg-25A-02, 202UA-15kg-25A, 202UA-15kg-25A-02, 202UA-37.5kg-25A, 202UA-37.5kg-25A-02

Features

• Material: Aluminum, Clear Anodized
• Rated Capacities: 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
• Full Scale Output: 0.9mV/V ± 0.1%
• Calibration in mV/V/Ω: ± 0.05%
• Safe Overload: 150% of full scale
• Breaking Overload: 300% of full scale
• IP Rating: IP65
• CE and RoHS certified

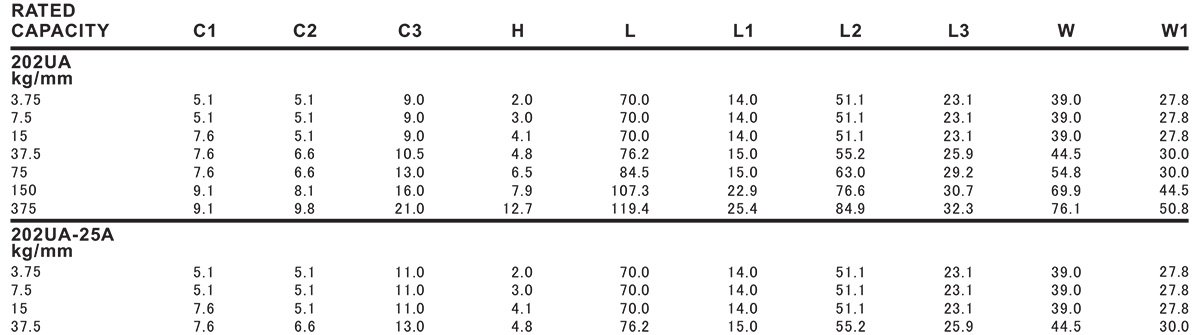

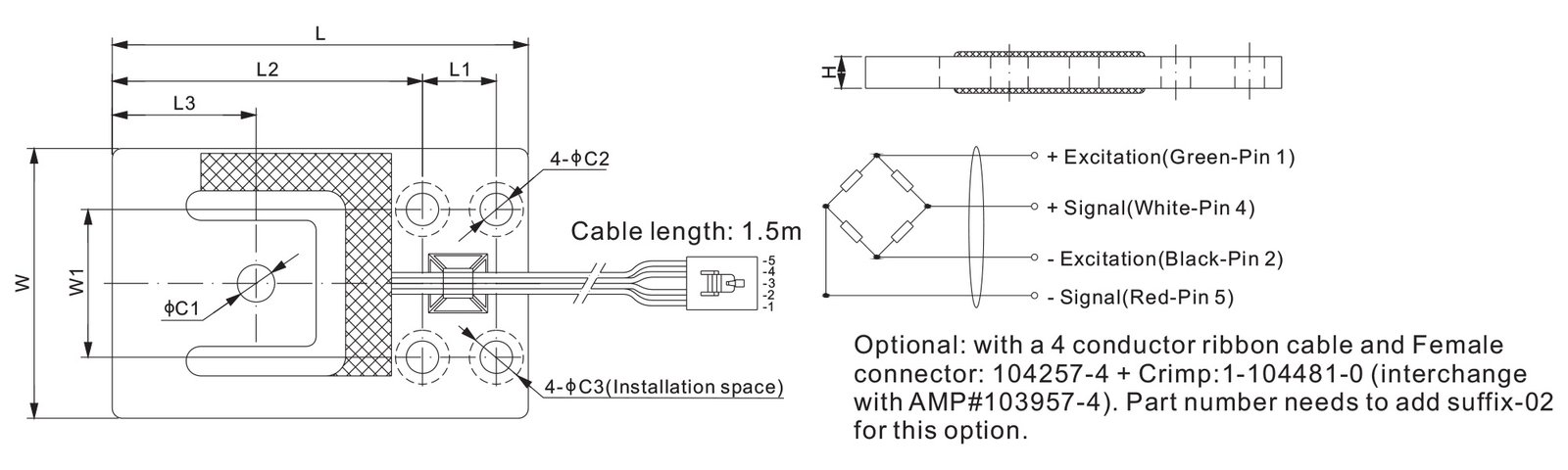

Dimensions

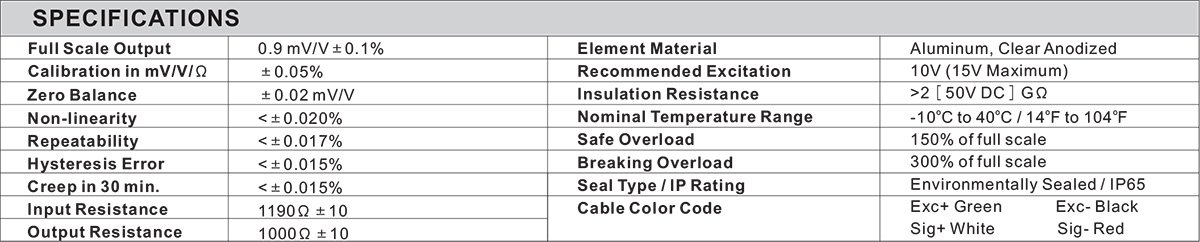

Specifications
