Description

Models

363YS-1t-YZ, 363YS-2t-YZ, 363YS-3t-YZ, 363YS-5t-YZ, 363YS-10t-YZ, 363YS-20t-YZ, 363YS-30t-YZ, 363YS-50t-YZ, 363YS-100t-YZ, 363YS-150t-YZ, 363YS-200t-YZ, 363YS-300t-YZ

Features

• Material: Stainless steel
• Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t
• Full Scale Output: 2.0mV/V ± 1%
• Safe Overload: 150% of full scale
• Breaking Overload: 300% of full scale
• IP Rating: IP68
• CE and RoHS certified
• ATEX, FM, IECEx available upon request

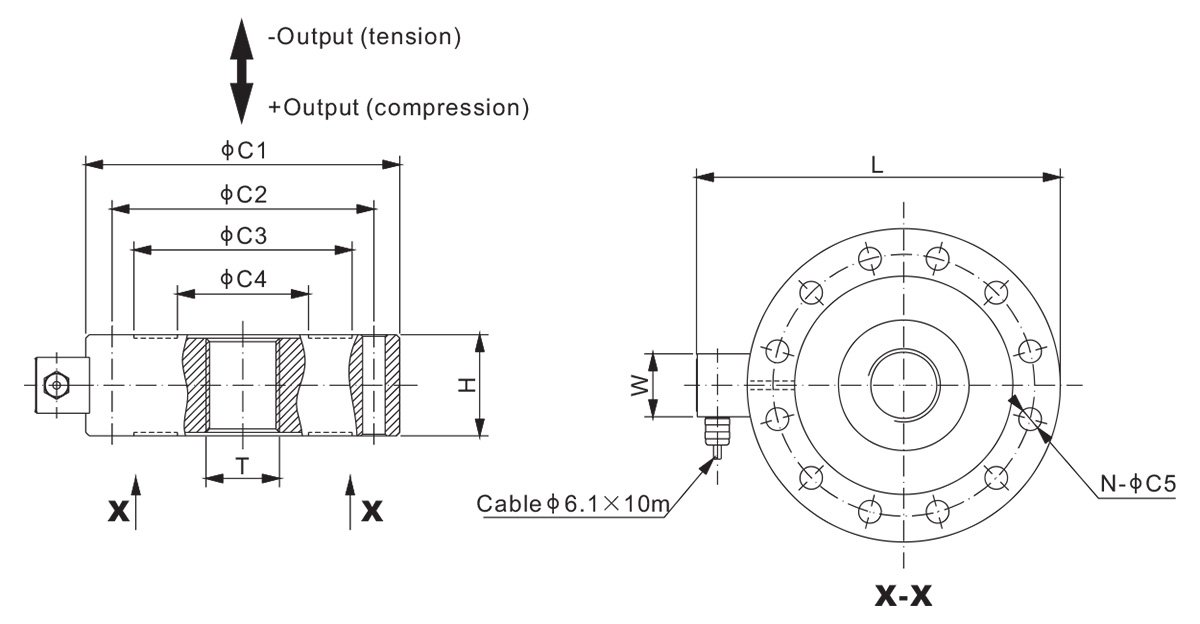

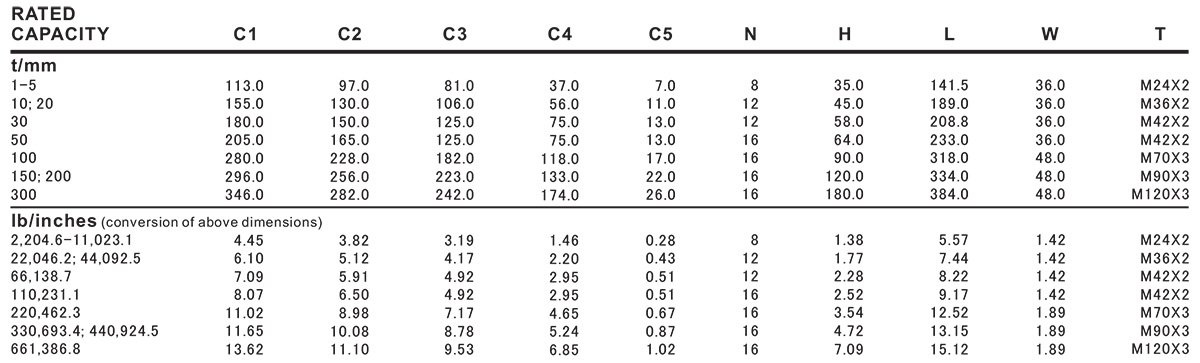

Dimensions

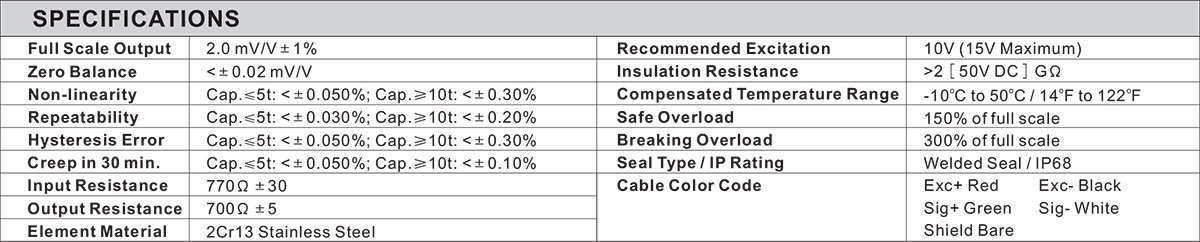

Specifications
