Description

Models

535ASM2-5t-YZ, 535ASM2-10t-YZ, 535ASM2-15t-YZ, 535ASM2-20t-YZ, 535ASM2-30t-YZ, 535ASM2-50t-YZ, 535ASM2-100t-YZ, 535ASM2-5t, 535ASM2-10t, 535ASM2-15t, 535ASM2-20t, 535ASM2-30t, 535ASM2-50t, 535ASM2-100t

Features

• Material: Load cell: Stainless steel ( 2Cr13 or 17-4PH stainless steel ); Shackle: Alloy steel.
• Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
• CE, RoHS, and Ex certified load cells
• Load pin and shackle integration
• Bobbin design provides high accuracy and repeatability
• High tensile shackle meets ISO2415-2004 requirements
• Bridge Impedance: 350 Ohms
• Full Scale Output: 2.5mV/V ± 0.25%
• Non-linearity: ≤ 1% of full scale
• Repeatability: ≤ 0.5% of full scale
• Hysteresis Error: ≤ 1% of full scale
• Test Load: 2 times of the rated capacity
• Total Error: 1% of full scale
• Seal Type/IP Rating: Environmentally Sealed/IP67

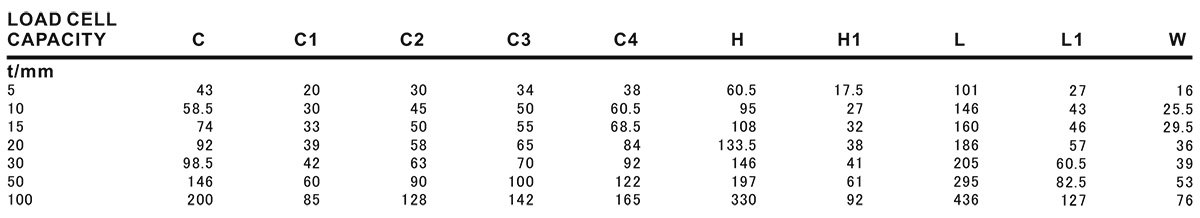

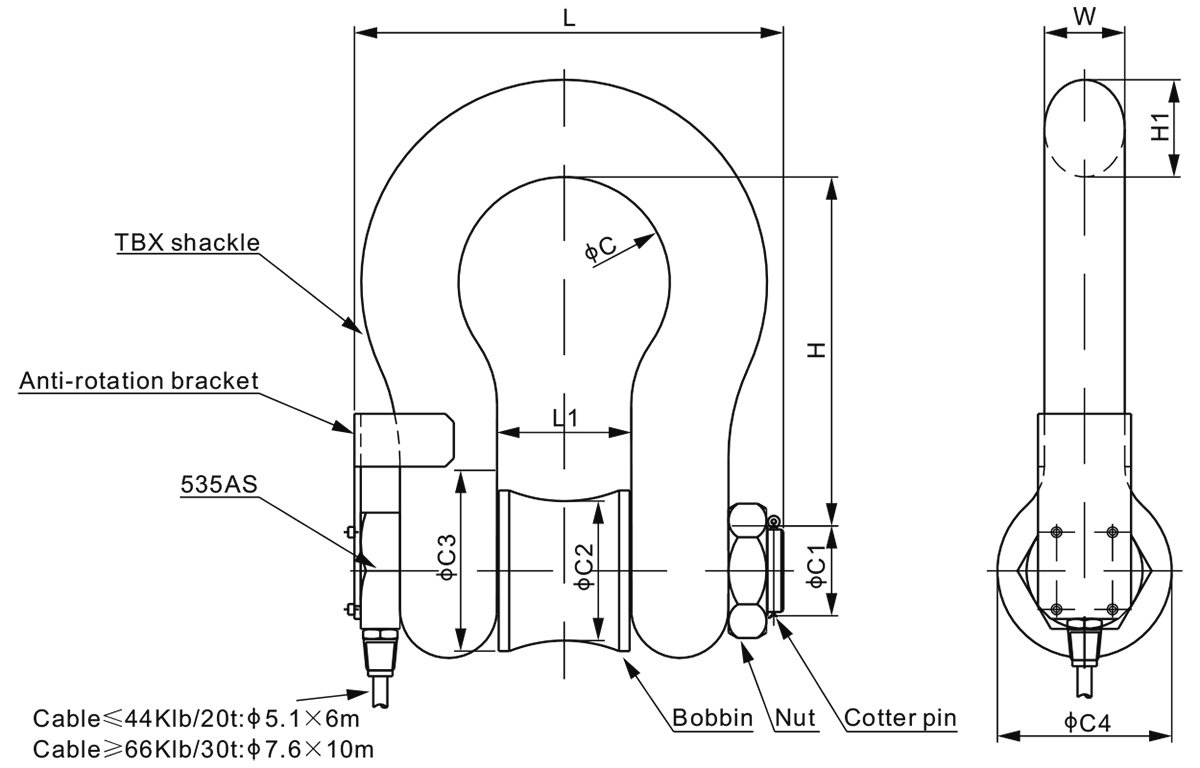

Dimensions

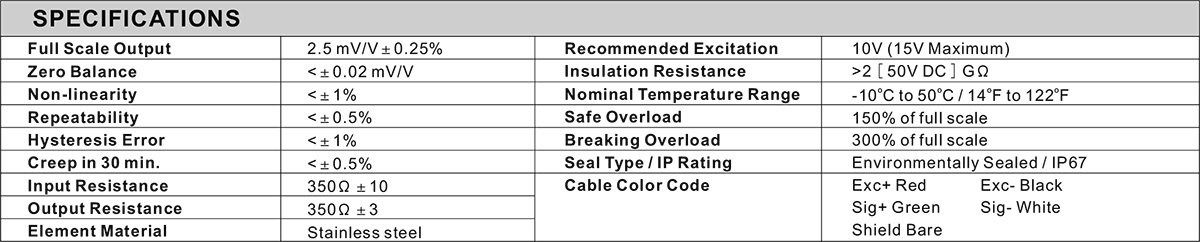

Specifications
