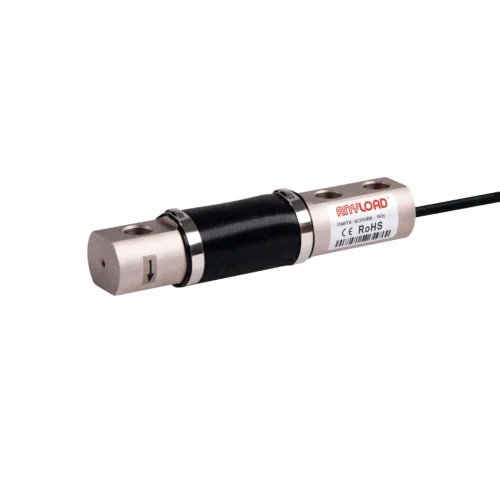

Description
Models
563HBB-50lb, 563HBB-100lb, 563HBB-200lb, 563HBB-250lb, 563HBB-500lb, 563HBB-1Klb, 563HBB-2.5Klb
Features
- Material: Alloy steel
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 1Klb, 2.5Klb
- Full Scale Output: 2.0mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP65
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request

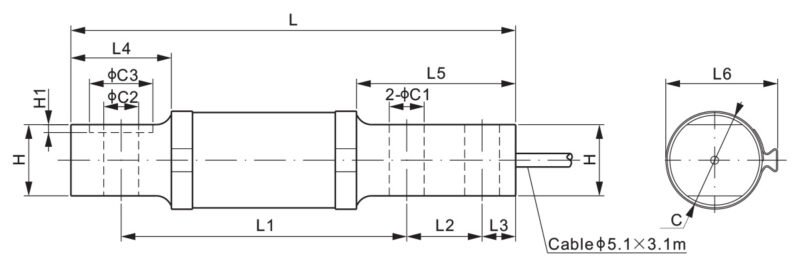

Dimensions
| Capacity(lb/inches) | C | C1 | C2 | C3 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | L6 |
| 50~100 | 1.46 | 0.31 | 0.31 | – | 1.06 | – | 6.00 | 4.25 | 0.88 | 0.38 | 1.19 | 1.97 | 1.69 |
| 200~1,000 | 1.46 | 0.52 | 0.52 | – | 1.06 | – | 6.62 | 4.25 | 1.12 | 0.50 | 1.49 | 2.36 | 1.69 |
| 2,500 | 2.17 | 0.53 | 0.62 | 1.19 | 1.25 | 0.12 | 11.38 | 8.25 | 1.75 | 0.50 | 2.84 | 3.98 | 2.40 |
| Capacity(kg/mm) | C | C1 | C2 | C3 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | L6 |
| 22.68~45.36 | 37.0 | 7.9 | 7.9 | – | 26.9 | – | 152.4 | 108.0 | 22.4 | 9.7 | 30.2 | 50.0 | 43.0 |
| 90.72~453.59 | 37.0 | 13.2 | 13.2 | – | 26.9 | – | 168.2 | 108.0 | 28.5 | 12.7 | 37.8 | 60.0 | 43.0 |
| 1133.98 | 55.0 | 13.5 | 15.8 | 30.3 | 31.8 | 3.0 | 289.1 | 209.6 | 44.5 | 12.7 | 72.1 | 101.0 | 61.0 |

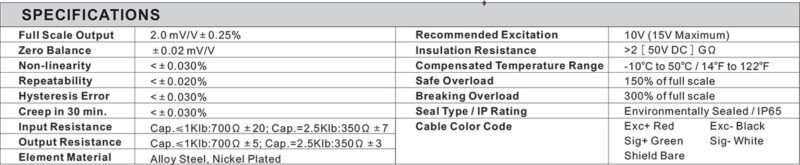

Specifications
