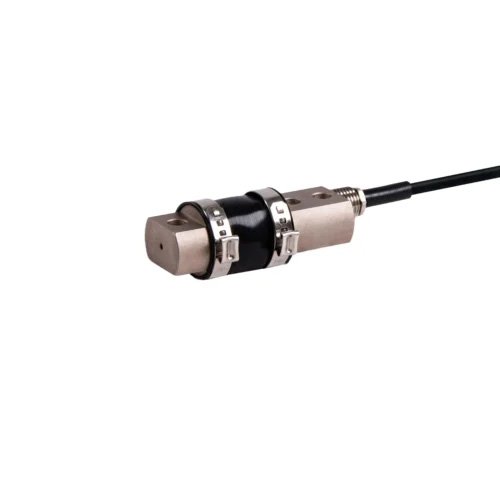

Description
Models
563SH-25lb, 563SH-50lb, 563SH-100lb, 563SH-150lb, 563SH-200lb, 563SH-250lb, 563SH-500lb
Features
- Material: Alloy steel
- Rated Capacities: 25lb, 50lb, 100lb, 150lb, 200lb, 250lb, 300lb, 500lb
- Full Scale Output: 3mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP65
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request

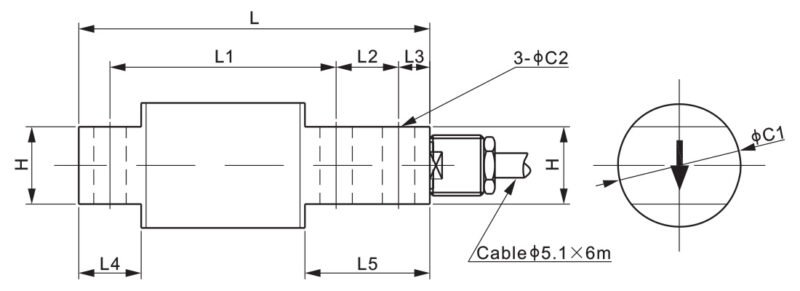

Dimensions
| Capacity | C1 | C2 | H | L | L1 | L2 | L3 | L4 | L5 |
| 25~500(lb/inches) | 1.30 | 0.26 | 0.62 | 2.81 | 1.81 | 0.50 | 0.25 | 0.50 | 1.00 |
| 11.34~226.8(kg/mm) | 33.0 | 6.6 | 15.7 | 71.4 | 46.0 | 12.7 | 6.35 | 12.7 | 25.4 |

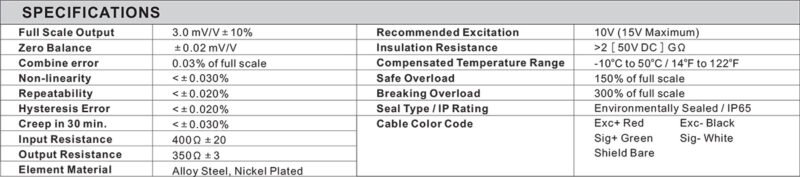

Specifications
