Description
Models
563YH-23A-250lb, 563YH-23A-500lb, 563YH-23-1Klb, 563YH-23-1.5Klb, 563YH-23-2Klb, 563YH-23-2.5Klb, 563YH-23-3Klb, 563YH-23-4Klb, 563YH-23-SE5Klb, 563YH-23-5Klb, 563YH-23-10Klb, 563YH-23-15Klb, 563YH-23-20Klb
Features
- Material: Alloy steel
- Rated Capacities: 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full Scale Output: 3mV/V± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:9 500 Class III, Multiple Cell and 1:5 000 Class III, Single Cell certified from 250lb-2.5Klb
- NTEP 1:10 000 Class III, Multiple Cell and 1:6 000 Class III, Single Cell certified from 4Klb-20Klb
- OIML MAA C4, Y=15 000 certified from 1Klb-5Klb
- OIML C6 certified from 10Klb-20Klb
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request

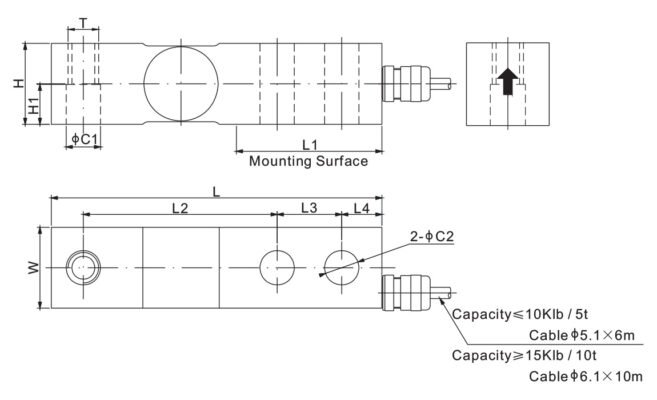

Dimensions
| Rated Capacity (lb/inches) | C1 | C2 | H | H1 | L | L1 | L2 | L3 | L4 | W | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 250–4,000; SE 5,000 | 0.53 | 0.53 | 1.25 | 0.62 | 5.12 | 2.25 | 3.00 | 1.00 | 0.62 | 1.25 | 1/2–20 UNF–2B |
| 5,000–10,000 | 0.78 | 0.78 | 1.50 | 0.75 | 6.75 | 3.00 | 3.75 | 1.50 | 0.75 | 1.50 | 3/4–16 UNF–2B |
| 15,000–20,000 | 1.03 | 1.03 | 2.00 | 1.00 | 8.88 | 4.00 | 4.88 | 2.00 | 1.00 | 2.00 | 1–14 UNS–2B |

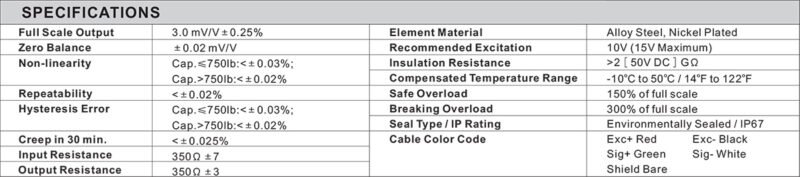

Specifications
