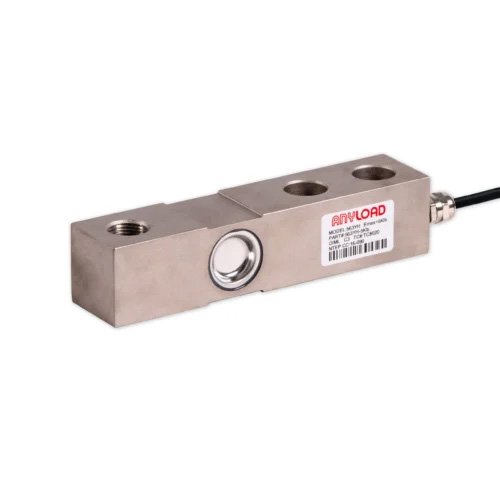

Description
Models
563YH-100lb, 563YH-250lb, 563YH-500lb, 563YH-1Klb, 563YH-1.5Klb, 563YH-2Klb, 563YH-2.5Klb, 563YH-LE2.5Klb, 563YH-4Klb, 563YH-SE5Klb, 563YH-5Klb, 563YH-10Klb, 563YH-15Klb, 563YH-20Klb, 563YH-100kg, 563YH-200kg, 563YH-300kg, 563YH-500kg, 563YH-750kg, 563YH-1t, 563YH-1.5t, 563YH-2t, 563YH-2.5t, 563YH-3t, 563YH-5t, 563YH-10t, 563YH-20t
Features
- Material: Alloy steel
- Rated Capacities: 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 100kg, 200kg, 300kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t
- Full Scale Output: 3mV/V± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
- NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
- OIML MAA C4, Y=15 000 certified from 500kg-2.5t
- OIML C3 certified from 3t-10t
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request

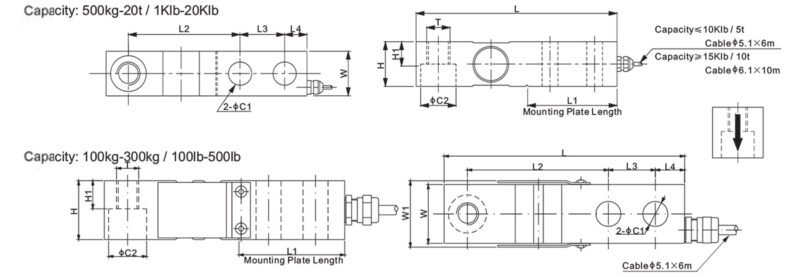

Dimensions
| Rated Capacity | C1 | C2 | H | H1 | L | L1 | L2 | L3 | L4 | W | W1 | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/inches | ||||||||||||
| 100–500 | 0.53 | 0.81 | 1.25 | 0.60 | 5.12 | 2.25 | 3.00 | 1.00 | 0.62 | 1.25 | 1.42 | 1/2–20 UNF–2B |
| 1,000–4,000; SE 5,000 | 0.53 | 0.81 | 1.25 | 0.60 | 5.12 | 2.25 | 3.00 | 1.00 | 0.62 | 1.25 | – | 1/2–20 UNF–2B |
| 5,000–10,000 | 0.78 | 0.19 | 1.50 | 0.75 | 6.75 | 3.00 | 3.75 | 1.50 | 0.75 | 1.50 | – | 3/4–16 UNF–2B |
| 15,000–20,000 | 1.03 | 0.81 | 2.00 | 1.00 | 8.75 | 4.00 | 4.75 | 2.00 | 1.00 | 2.00 | – | 1–14 UNS–2B |
| kg/mm | ||||||||||||
| 100–300 | 13.5 | 20.6 | 31.8 | 15.2 | 130.0 | 57.2 | 76.2 | 25.4 | 15.8 | 31.8 | 36.0 | M12×1.75 |
| 500–2,000 | 13.5 | 20.6 | 31.8 | 15.2 | 130.0 | 57.2 | 76.2 | 25.4 | 15.8 | 31.8 | – | M12×1.75 |
| 2,500; 3,000; 5,000 | 19.8 | 20.2 | 38.1 | 19.1 | 171.5 | 76.2 | 95.3 | 38.1 | 19.1 | 38.1 | – | M18×1.50 |
| 10,000 | 26.2 | 30.6 | 50.8 | 25.4 | 222.3 | 101.6 | 120.7 | 50.8 | 25.4 | 50.8 | – | M24×2.00 |
| 20,000 | 30.2 | 30.0 | 58.0 | 32.0 | 241.5 | 110.0 | 132.0 | 55.0 | 27.5 | 58.0 | – | M36×2.00 |

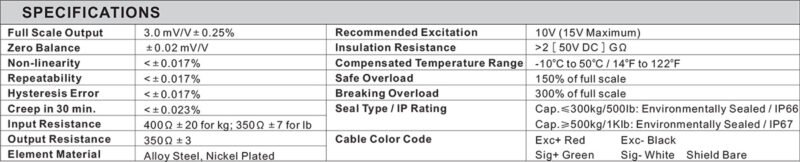

Specifications
