Description

Models

563YHM2-(0.1-SE5)Klb, 563YHM2-(5-10)Klb, 563YHM2-(100kg-2t), 563YHM2-(3-5)t

Features

• Assembles: 563YH single ended beam load cell
• Material: Alloy steel
• Capacities: 100lb-10Klb/100kg-5t
• NTEP certified load cells from 1Klb-10Klb
• OIML certified load cells from 500kg-2.5t
• CE , RoHS and Ex certified load cells
• Center pivoted and self-checking with 50% rated load anti-lifting protection
• Tension load applied to the load cell is converted to compression load application for the weigh module
• Load cell not included

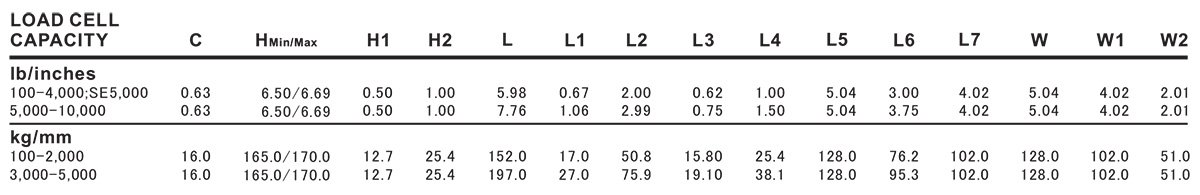

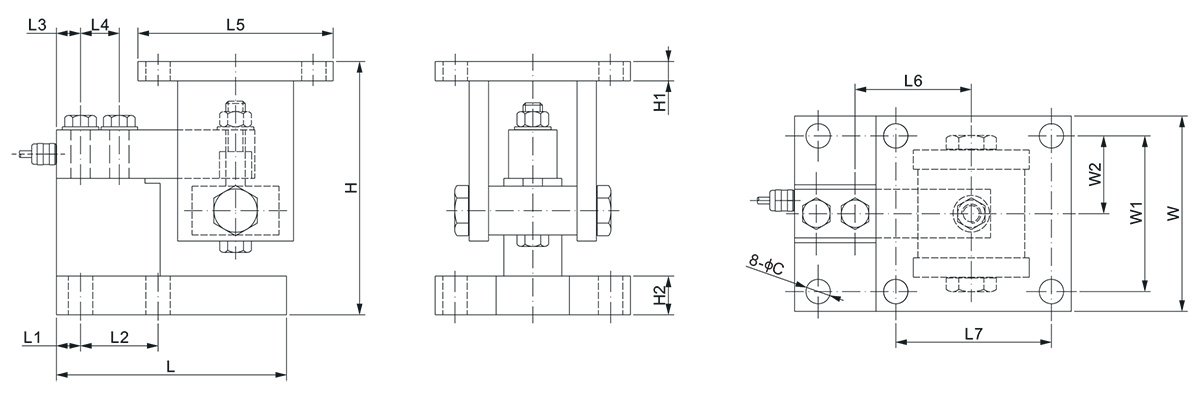

Dimensions
