Description

Models

563YHM4-(0.1-SE5)Klb-02, 563YHM4-(5-10)Klb-02, 563YHM4-(15-20)Klb-02, 563YHM4-(100kg-2t)Klb-02, 563YHM4-(3-5)t-02, 563YHM4-10t-02

Features

• Assembles: 563YH Alloy Steel Shear Beam Load Cell
• Capacities: 100lb-20Klb/100kg-10t
• Integral “Jacking” for easy load cell removal/installation
• Rocker pin design-allows for 360° thermal expansion
• Both uplift and overload protection with lateral stops
• Versatile mounting options for conventional tank/vessel leg
  • Able to use existing 4-square tank leg mount holes in floor
  • Free to rotate for fixed position 360° w/same 4-mount holes
  • Able to flip entire mount 180° for further mount options
• Side holes each side for shipping & installation brackets
• Flexible copper braided grounding strap
• Load cell not included

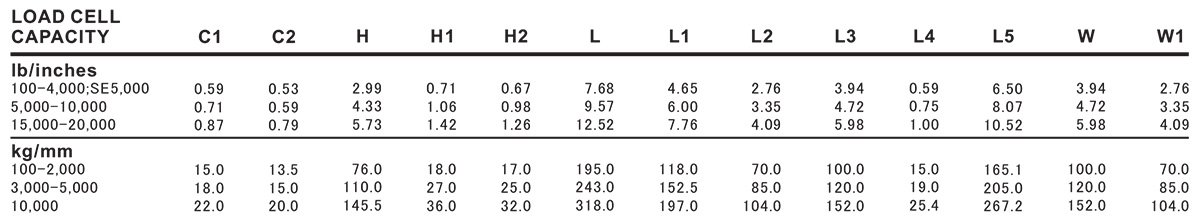

Dimensions
