Description

Models

563YS-500lb, 563YS-1Klb, 563YS-2Klb, 563YS-2.5Klb, 563YS-4Klb, 563YS-SE5Klb, 563YS-5Klb, 563YS-10Klb, 563YS-15Klb, 563YS-20Klb, 563YS-250kg, 563YS-500kg, 563YS-1t, 563YS-2t, 563YS-3t, 563YS-5t, 563YS-10t

Features

• Material: Stainless steel
• Rated Capacities: 500lb, 1Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 250kg, 500kg, 1t, 2t, 3t, 5t, 10t
• Full Scale Output: 2mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• NTEP: 500lb-2.5Klb & 250kg-1t: NTEP 1:5000 Class III, S; NTEP 1:9500 Class III, M
  4Klb-20Klb & 2t-5t: NTEP 1:6000 Class III, S; NTEP 1:10000 Class III, M
• OIML: 1KLb-5Klb & 500kg-2t: OIML MAA C5, Y=26000
  10Klb-20Klb & 3t-10t: OIML MAA C6, Y=8500;
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

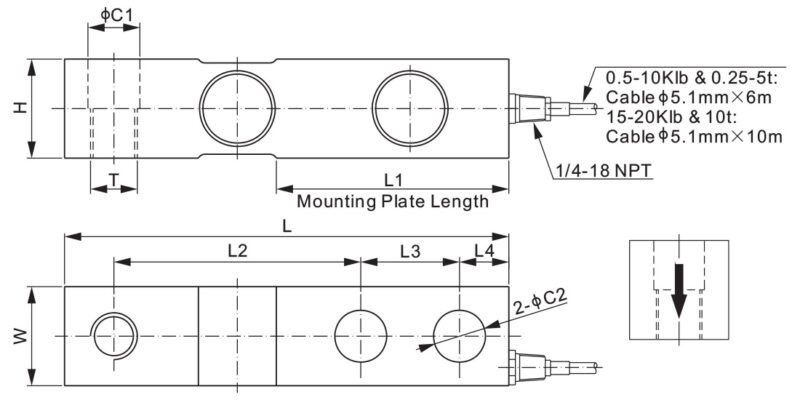

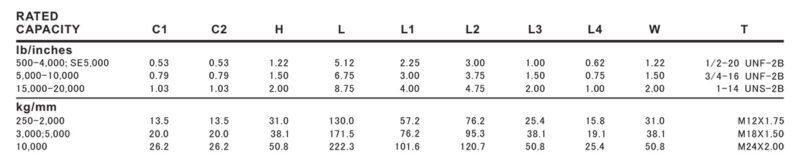

Dimensions

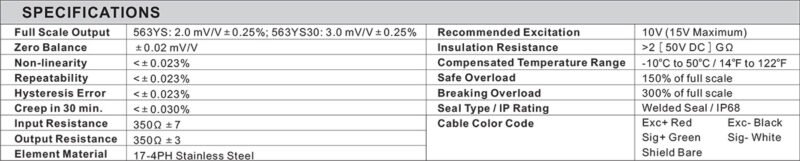

Specifications
