Description

Models

563YS30GS-500lb, 563YS30-1Klb, 563YS30-2Klb, 563YS30-2.5Klb, 563YS30-4Klb, 563YS30-SE5Klb, 563YS30-10Klb, 563YS30-15Klb, 563YS30-20Klb

Features

• Material: Stainless steel
• Rated Capacities: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb
• Full Scale Output: 3mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• NTEP: 500lb-2.5Klb: NTEP 1:5000 Class III, S; NTEP 1:9500 Class III, M
  4Klb-20Klb: NTEP 1:6000 Class III, S; NTEP 1:10000 Class III, M
• OIML: 1KLb-5Klb: OIML MAA C4, Y=15000
  10Klb-20Klb: OIML MAA C6, Y=8500;
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

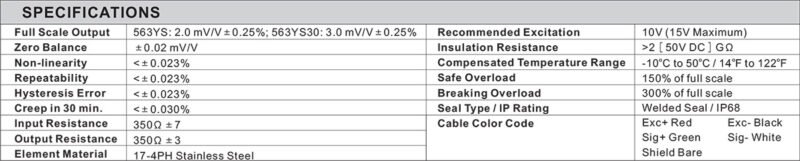

Specifications
