Description

Models

563YSBK-200kg, 563YSBK-250kg, 563YSBK-500kg, 563YSBK-1t, 563YSBK-2t

Features

• Material: Stainless steel
• Thread: Metric
• Rated Capacities: 200kg, 500kg, 1t, 2t
• Full Scale Output: 2mV/V ± 0.1%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

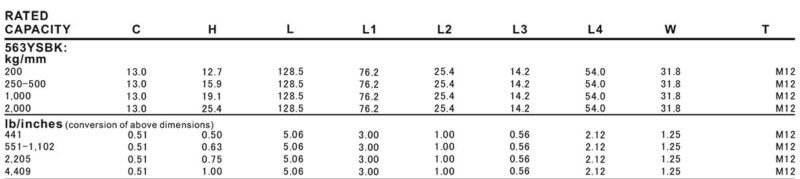

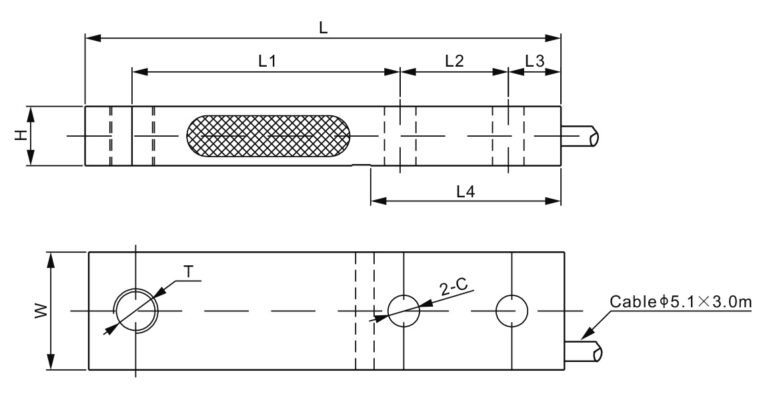

Dimensions

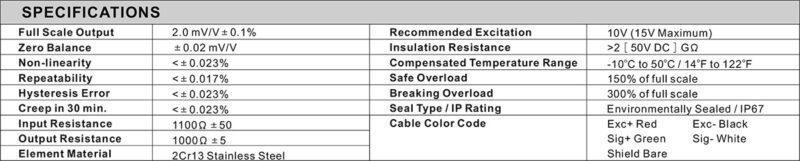

Specifications
