Description

Models

563YSGS-1Klb, 563YSGS-2.5Klb, 563YSGS-4Klb, 563YSGS-SE5Klb, 563YSGS-5Klb, 563YSGS-10Klb, 563YSGS-15Klb, 563YSGS-20Klb, 563YSGS-500kg, 563YSGS-1t, 563YSGS-2t, 563YSGS-3t, 563YSGS-5t, 563YSGS-10t, 563YSGS-20t

Features

• Material: Stainless steel
• Rated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb, 15Klb, 20Klb, 500kg, 1t, 2t, 3t, 5t, 10t, 20t
• Full Scale Output: 3mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10Klb
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

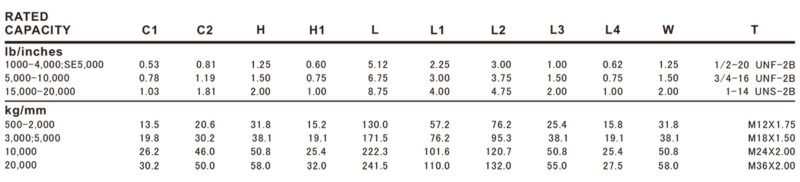

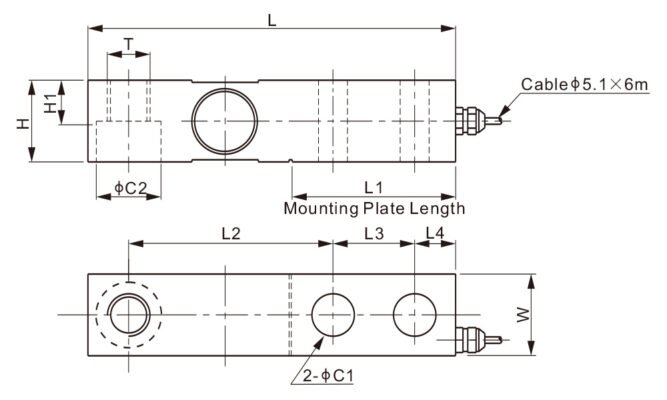

Dimensions

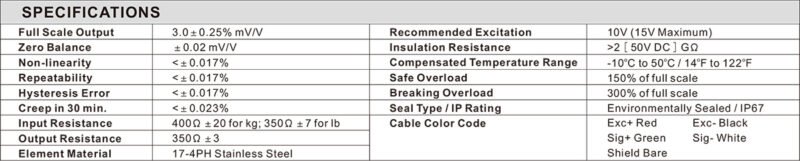

Specifications
