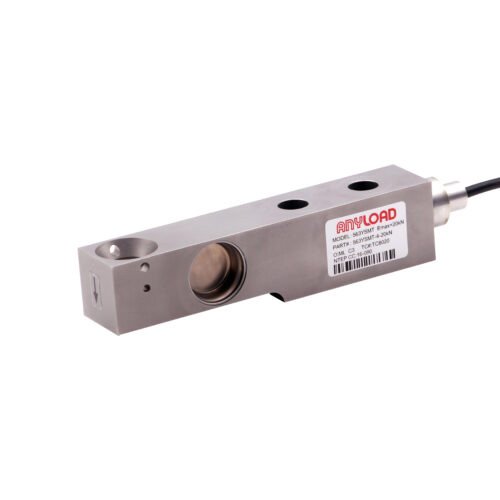

Description

Models

563YSMT-4-5kN, 563YSMT-4-10kN, 563YSMT-4-20kN, 563YSMT-4-50kN, 563YSMT-4-100kN

Features

• Material: Stainless steel
• Rated Capacities: 5kN, 10kN, 20kN, 50kN, 100kN
• Full-Scale Output: 2.0 mV/V± 0.1%
• Safe Overload: 200%
• Breaking Overload: 300%
• IP Rating: IP68
• 5kN-10kN: NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell
• 20kN-50kN: NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell
• 5kN-20kN: OIML MAA C5, Y=26 000;
• 50kN-100kN: OIML MAA C6, Y=8 500
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

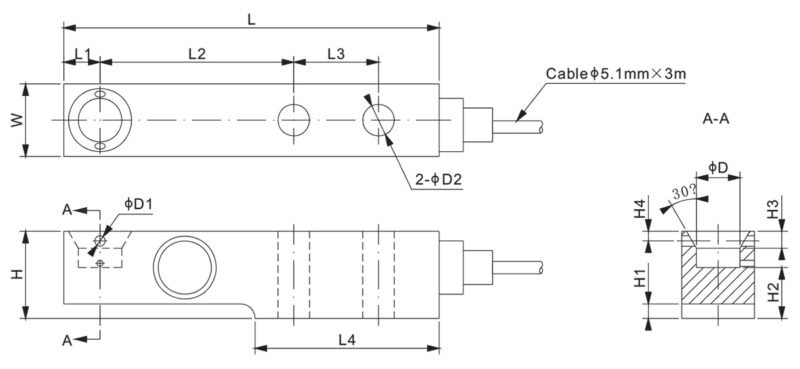

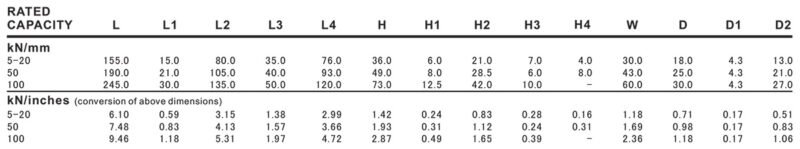

Dimensions

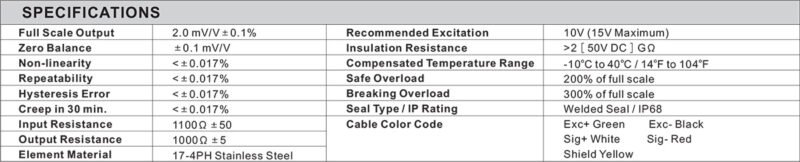

Specifications
