Description

Models

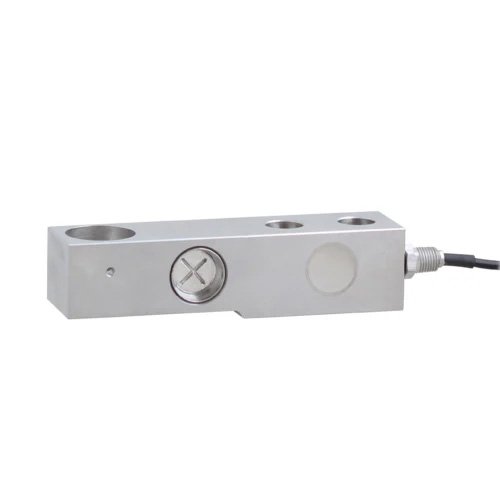

563YSMT-250lb, 563YSMT-500lb, 563YSMT-1.25Klb, 563YSMT-2.5Klb, 563YSMT-4Klb, 563YSMT-5Klb, 563YSMT-10Klb

Features

• Material: Stainless steel
• Rated Capacities: 250lb, 500lb, 1.25Klb, 2.5Klb, 4Klb, 5Klb, 10Klb
• Full Scale Output: 2mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• NTEP: 250lb-2.5Klb: NTEP 1:5000 Class III, Single Cell; NTEP 1:9500 Class III, Multiple Cell
  4Klb-10Klb: NTEP 1:6000 Class III, Single Cell; NTEP 1:10000 Class III, Multiple Cell
• OIML: 1.25Klb-5Klb: OIML MAA C5, Y=26000;
  10Klb: OIML MAA C6, Y=8500
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request
• Pin to be ordered separately

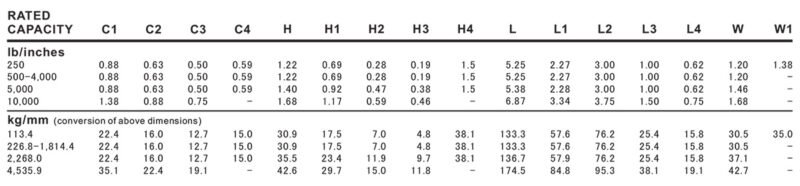

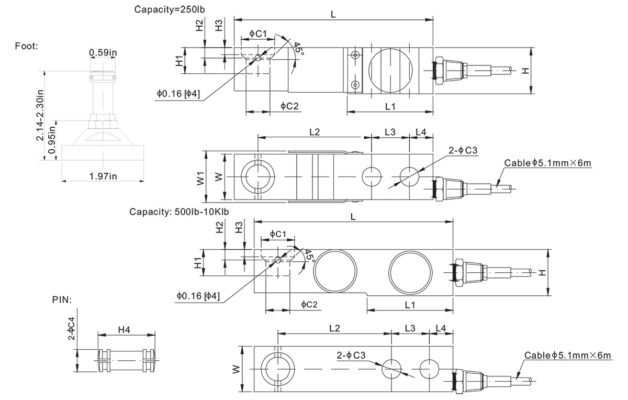

Dimensions

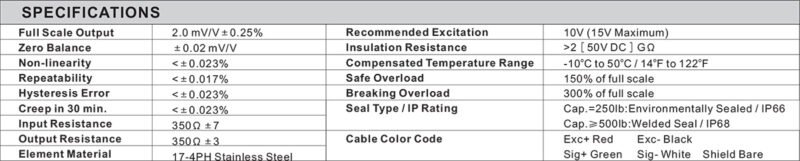

Specifications
