Description

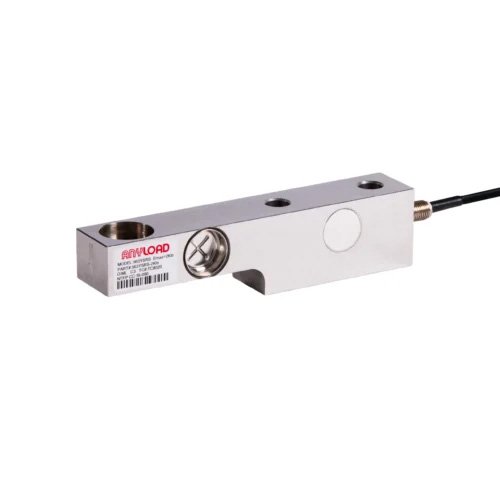

Models

563YSRS-1Klb, 563YSRS-2Klb, 563YSRS-5Klb

Features

• Material: Stainless steel
• Rated Capacities: 1Klb, 2Klb, 5Klb
• Full Scale Output: 2mV/V ± 1%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• NTEP: 1Klb-2Klb: NTEP 1:5000 Class III, Single Cell; NTEP 1:9500 Class III, Multiple Cell
  5Klb: NTEP 1:6000 Class III, Single Cell; NTEP 1:10000 Class III, Multiple Cell
• OIML: MAA C5, Y=26000
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

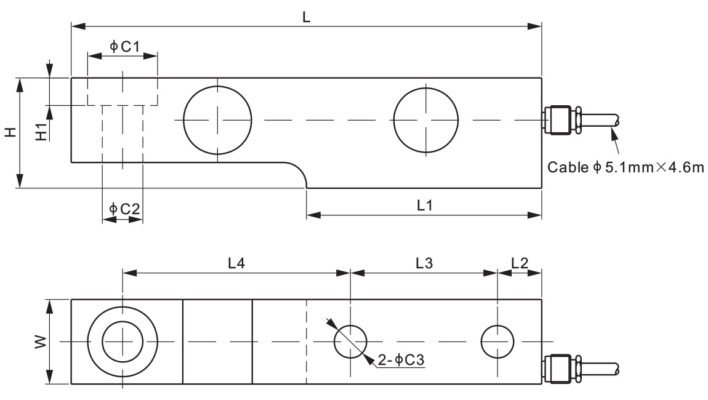

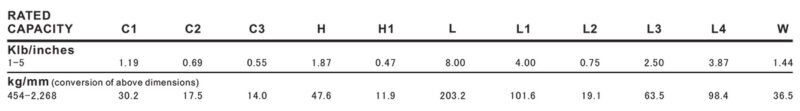

Dimensions

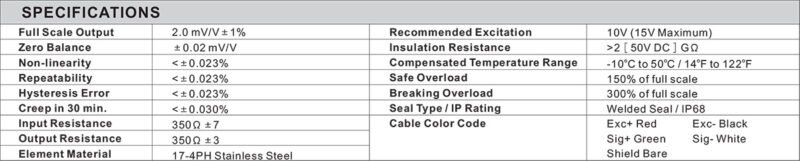

Specifications
