Description

Models

563YSSB-2.5Klb, 563YSSB-5Klb, 563YSSB-10Klb, 563YSSB-20Klb

Features

• Material: Stainless steel
• Rated Capacities: 2.5Klb, 5Klb, 10Klb, 20Klb
• Full Scale Output: 2mV/V ± 0.25%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP68
• NTEP: 2.5Klb: NTEP 1:5000 Class III, Single Cell;  NTEP 1:9500 Class III, Multiple Cell
  5Klb-20Klb: NTEP 1:6000 Class III, Single Cell; NTEP 1:10000 Class III, Multiple Cell
• OIML: 2.5Klb-5Klb: OIML MAA C5, Y=26000
  10K-20Klb: OIML MAA C6, Y=8500
• CE, RoHS and Ex(NEPSI) certified
• ATEX, FM, IECEx available upon request

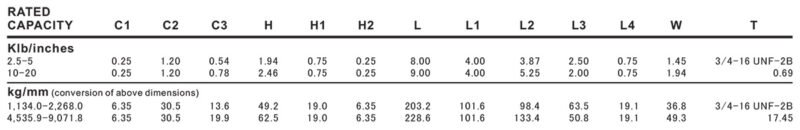

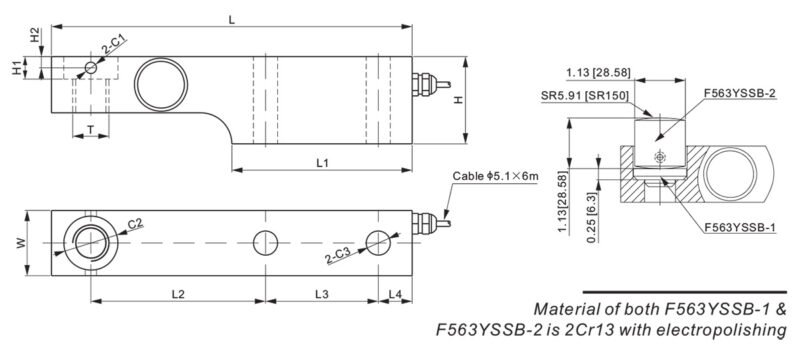

Dimensions

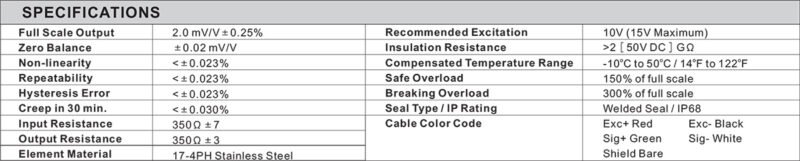

Specifications
