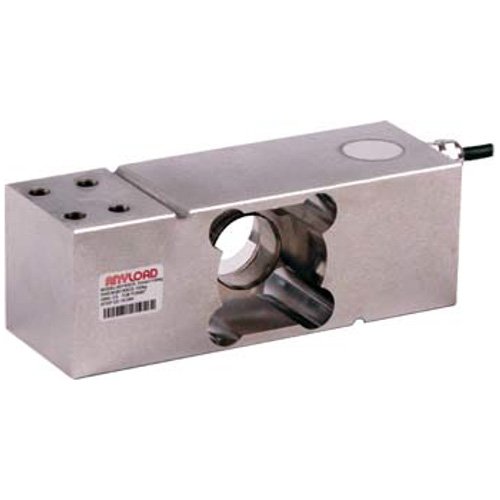

ANYLOAD / 651KSCS / Single Point Load Cell

ANYLOAD / 651KSCS / Single Point Load Cell

Capacity: 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
Material: Stainless Steel
Type: Single Point
Protection Class: Welded Seal / IP68

Categories: , ,
Tags: ,

Description

Models

651KSCS-60kg, 651KSCS-100kg, 651KSCS-150kg, 651KSCS-200kg, 651KSCS-250kg, 651KSCS-300kg, 651KSCS-500kg, 651KSCS-600kg, 651KSCS-750kg, 651KSCS-1t

Features

  • Material: Stainless steel
  • Rated Capacities: 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • Seal Type/IP Rating: Welded Seal/IP68

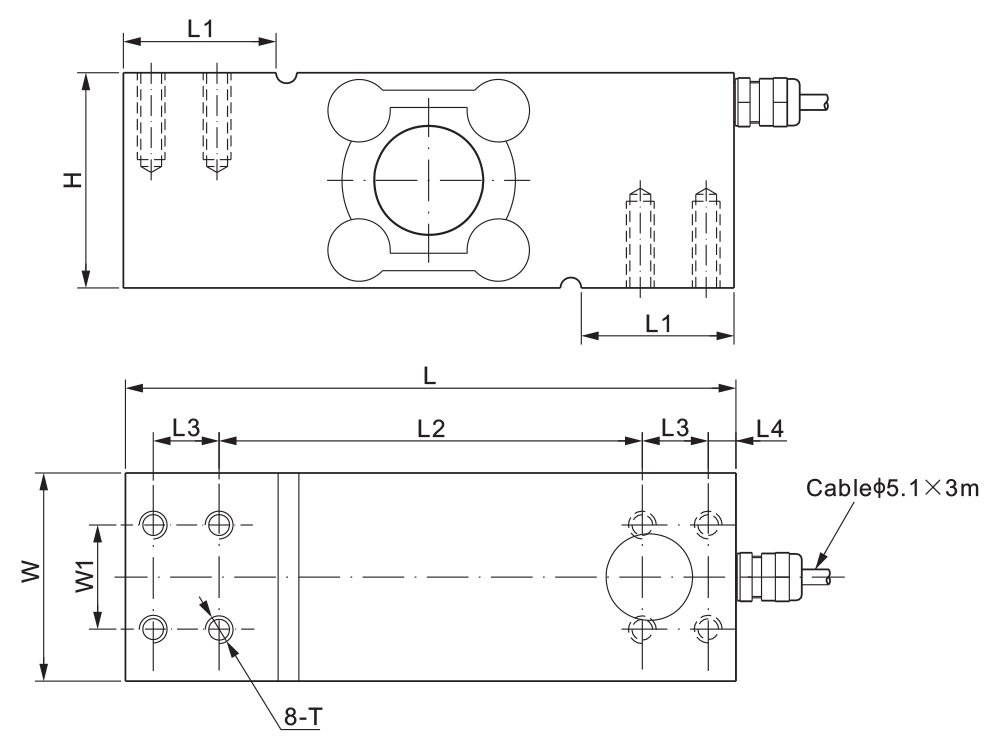

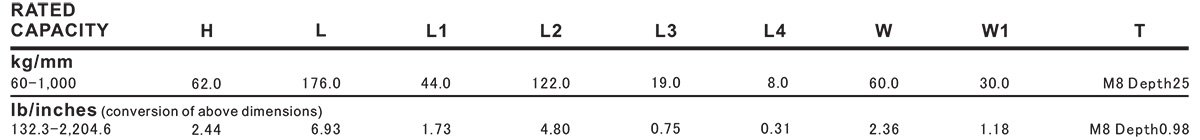

Dimensions

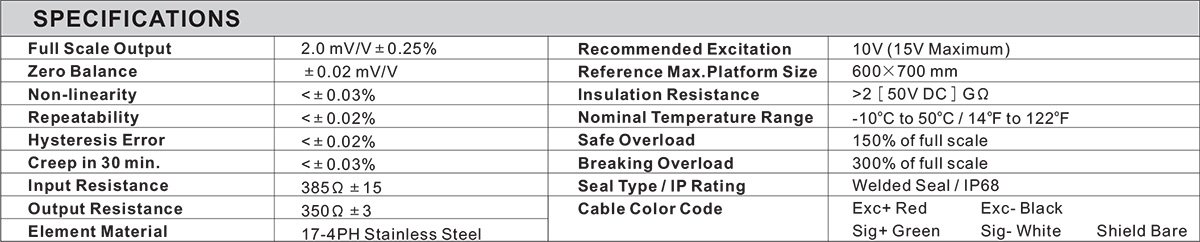

Specifications
