Description

Models

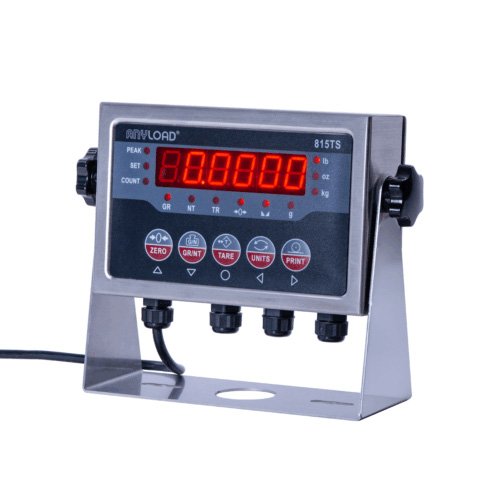

815TS-B-21E

Features

• 0.8”, 6 digits, 7 segments, LED display
• Indication of four units of measurements: kg, lb, oz and g
• Indication of gross, net, and tare
• Indication of stability and center of zero
• Easy wiring screw terminals
• Weight, peak, set point, and piece counting
• Password-protected calibration menu
• Physical and electronic sealing via audit trail function
• Two set point output relays
• Advanced analog, digital and average filtering
• Two independent RS232 serial communication ports
• One independent RS485 serial communication port
• Weatherproof stainless steel enclosure, NEMA4X / IP66
• Breather vent to avoid condensation inside

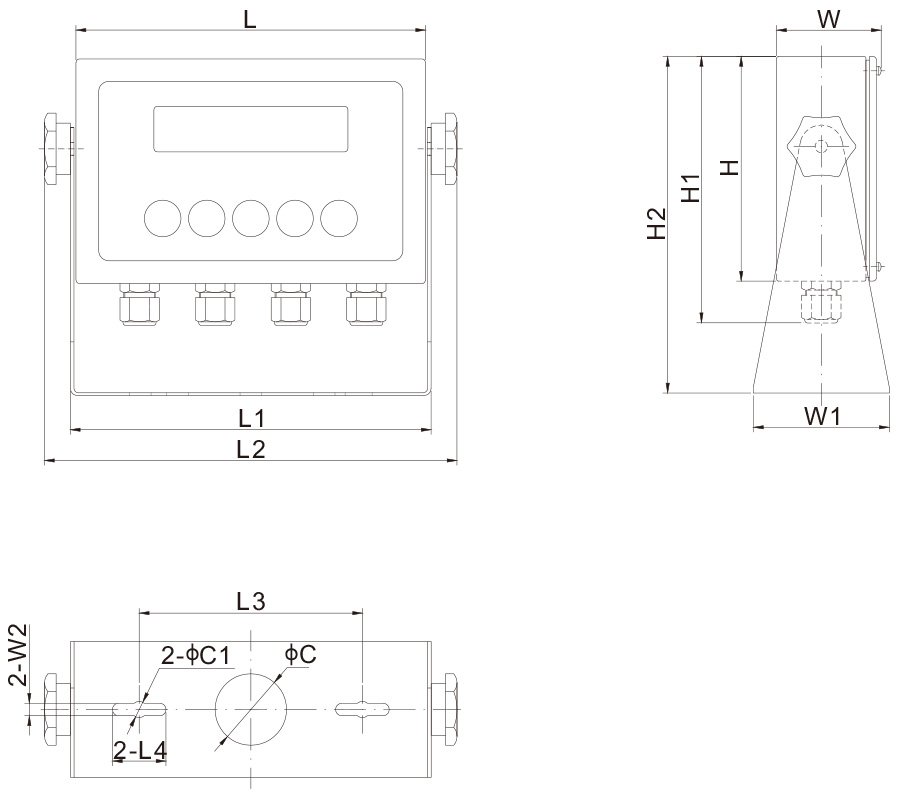

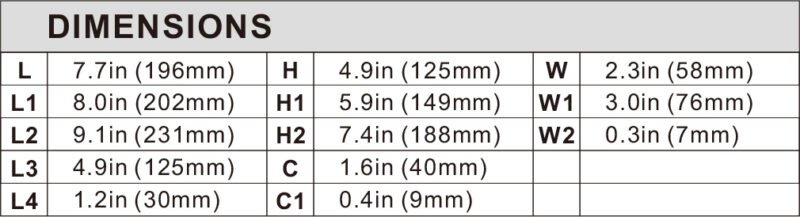

Dimensions

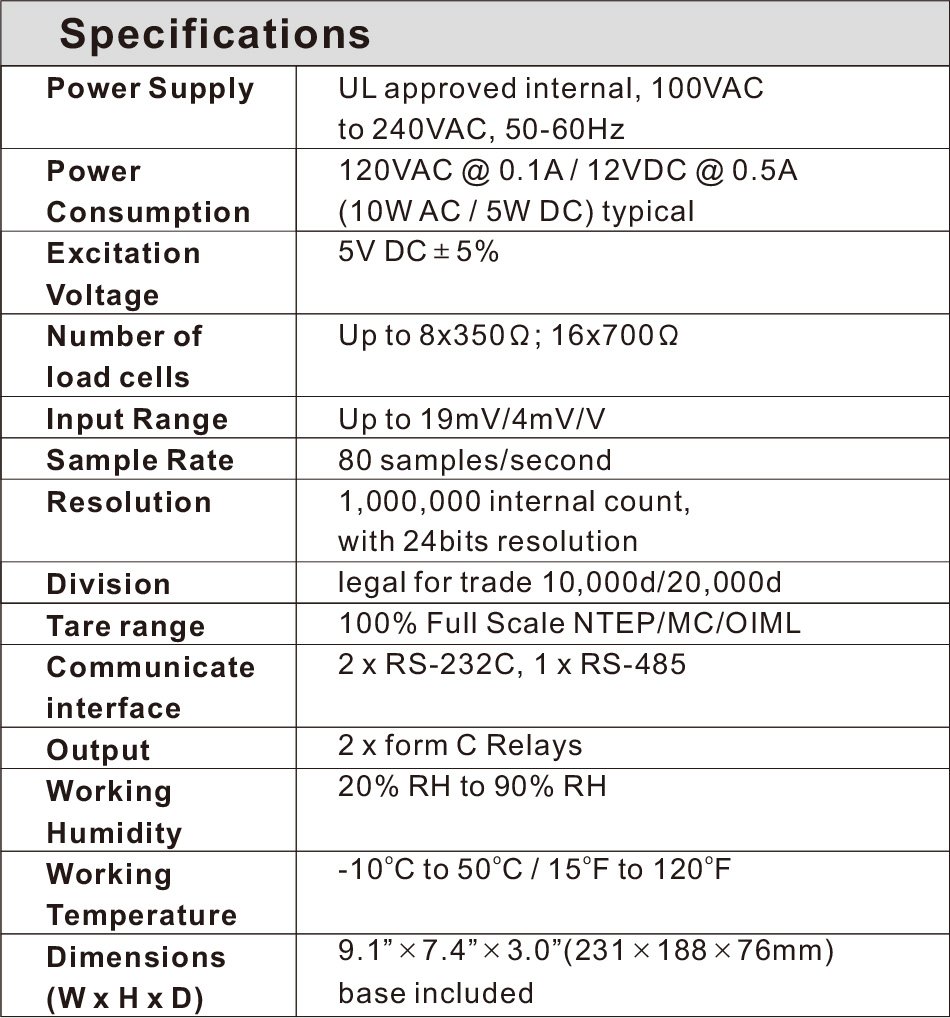

Specifications
